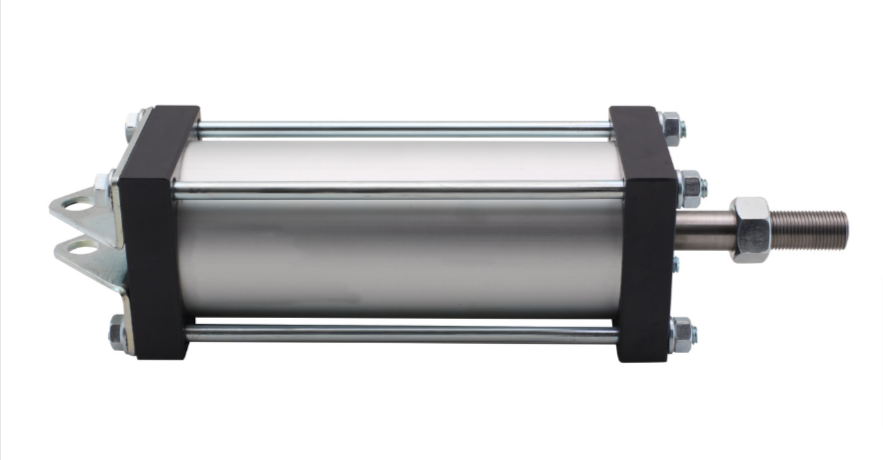

Tectran 29-350X6- 3.5 Bore x 6" Stroke
Tectran 29-350X6- 3.5 Bore x 6" Stroke
DESCRIPTION
Explore Tectran's Heavy Duty Tailgate Air Cylinders
Robust Construction: These tailgate air cylinders feature a heavy
duty aluminum cylinder housing that offers excellent corrosion resistance
Stainless Steel Piston Rod: Equipped with a heavy
duty stainless steel piston rod for durability
Piston Seal: The Buna
N piston seal ensures reliable performance
Additional Parts Required: Please note that the rear pivot pin (½") and piston rod clevis assembly are not included and must be ordered separately
Air In
Air Out: These cylinders are designed for air in and air out operation
Port Size: Features two ports with a size of 1/4" NPT each
Rod Diameter: Available in two options: 5/8" (2.5" bore) or 3/4" (3.5" bore)
Rod Thread Size: The rod thread size is 5/8"
18 NF x 2"
Recommended Operating Pressure: It is recommended to operate these cylinders at 100 psi
Maximum Operating Pressure: The maximum operating pressure should not exceed 150 psi Tectran's Heavy Duty Tailgate Air Cylinders are designed to provide robust and reliable performance, making them suitable for various applications in heavy
duty vehicles.
PLEASE NOTE: THIS VENDOR REQUIRES A MINIMUM PURCHASE OF $75.00. You may add additional products from Tectran to satilsy your order.
