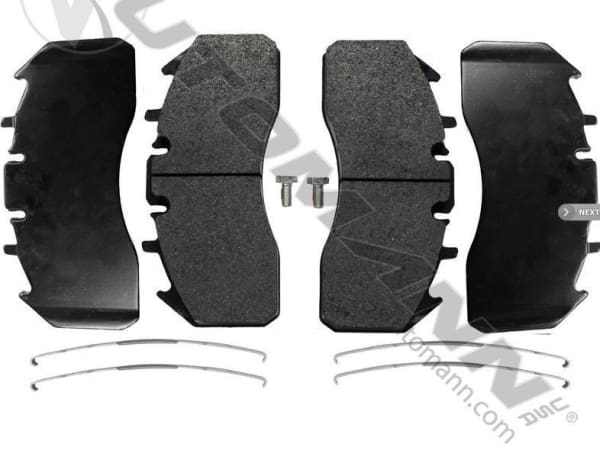

141.D1311SD-Air Disc Brake Pads Severe Duty (FMSI 8917 D1690 & 8426-D1311)
141.D1311SD -Air Disc Brake Pads Severe Duty (FMSI 8917 D1690 & 8426-D1311)
Automann “SD” (severe duty) air disc brake pads are formulated for demanding service and can be used on vehicles in combination with 20,000-lb or 23,000-lb rated drum brake materials.
¢ The back plates are blanked from a high grade of hot-rolled, pickled and oiled steel to resist corrosion.
The pad retention system is the long-time proven mechanical attachment method of wire mesh welded to the steel back plate combined with a special, high strength under layer to insure a secure bond for the life of the pad.
The friction material itself is integrally molded to the under layer.
The “SD” formulation has a long history of use in Europe and has been ECE R-90 performance certified. This material offers consistent service in demanding applications and good wear characteristics.
Each axle set of disc brake pads comes packaged with the hardware needed to complete a first class brake job.
CROSS REFERENCE:
D1311, 8426-D1311, D1690, 8917-D1690, MPBD1311HD, 3222F2476, 3222E2605, KIT2252H2BA, KIT2252H2BE, KIT2252H2CD, KIT2252H2DA, MMD1311AF, 29187, 141.D1311FS
Automann “SD” (severe duty) air disc brake pads are formulated for demanding service and can be used on vehicles in combination with 20,000-lb or 23,000-lb rated drum brake materials.
¢ The back plates are blanked from a high grade of hot-rolled, pickled and oiled steel to resist corrosion.
The pad retention system is the long-time proven mechanical attachment method of wire mesh welded to the steel back plate combined with a special, high strength under layer to insure a secure bond for the life of the pad.
The friction material itself is integrally molded to the under layer.
The “SD” formulation has a long history of use in Europe and has been ECE R-90 performance certified. This material offers consistent service in demanding applications and good wear characteristics.
Each axle set of disc brake pads comes packaged with the hardware needed to complete a first class brake job.
CROSS REFERENCE:
D1311, 8426-D1311, D1690, 8917-D1690, MPBD1311HD, 3222F2476, 3222E2605, KIT2252H2BA, KIT2252H2BE, KIT2252H2CD, KIT2252H2DA, MMD1311AF, 29187, 141.D1311FS
