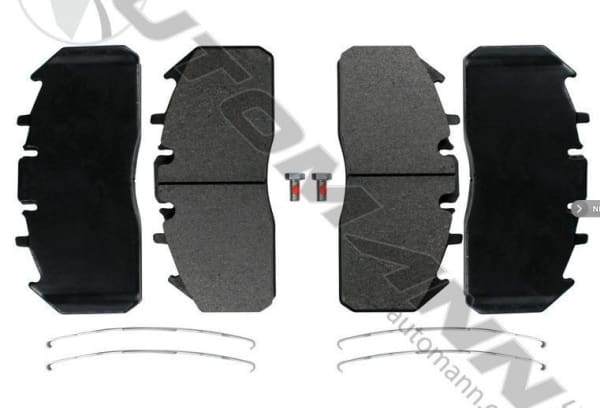

141.D1323FS-Air Disc Brake Pads Standard (FMSI 8435 D1323)
141.D1323FS -Air Disc Brake Pads Standard (FMSI 8435 D1323)
Automann “FS” (fleet standard) air disc brake pads are formulated for typical line haul service and can be used on vehicles in combination with 20,000-lb or 23,000-lb rated drum brake materials.
The back plates are blanked from a high grade of hot-rolled, pickled and oiled steel to resist corrosion.
The pad retention system is the long-time proven mechanical attachment method of wire mesh welded to the steel back plate combined with a special, high strength under layer to insure a secure bond for the life of the pad.
The friction material itself is integrally molded to the under layer.
The “FS” formulation has a long history of use in Europe and has been ECE R-90 performance certified.
This material offers consistent service and good wear characteristics.
Each axle set of disc brake pads comes packaged with the hardware needed to complete a first class brake job.
CROSS REFERENCE:
8435 D1323, D1323, Meritor® # KIT2252H3CE, KIT2252H3BE, MPBD1323CV, MPBD1323XT, 29188, 141.D1323FS
