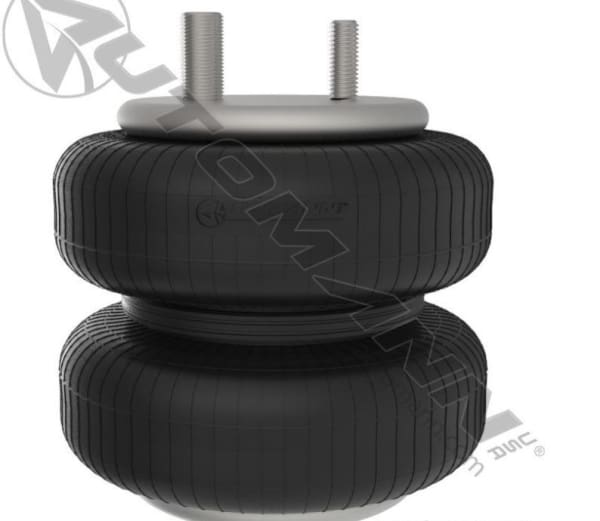

ABSP2B08RA-7705-Watson & Chalin Lift Air Spring

ABSP2B08RA-7705-Watson & Chalin Lift Air Spring

Specifications:
Brand Automann Phoenix
Automann Bellows# SP2B08RA
Firestone Bellows# 26C was 26
Goodyear Bellows# 579-92-3-530
Contitech Bellows# FD 120-20
Triangle Bellows# N/A
Bottom Plate Type A
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 5.5
Top Plate C to C Dia. (B) 2.5
Bottom Plate Hole/Stud Qty 2
Bottom Plate Dia. (C) 5.5
Bottom Plate C to C Dia. (D) 2.25
Bottom Part # N/A
Bottom Plate Alignment Parallel
Bumper No
Bracket N/A
Min. Height 3.1
Max. Height 10.6
Max. Dia. 8.6
