8204-Air Spring-Rolling Lobe, (product_type), (product_vendor) - Nick's Truck Parts

8204-Air Spring-Rolling Lobe

$ 109.67

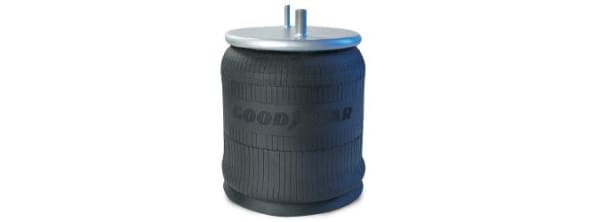

8204 Air Spring - Rolling Lobe
Piston # 9573
Piston Type Composite
Top Plate Holes/Studs - Qty = 2
Bottom Plate Holes/Studs - Qty = 1
Top Plate Diameter = 9.0"
Bottom Plate Diameter = 9.5"
Bellows # = 1T15M-2
Collapsed Height = 4.50"

CROSS REFERENCES:
90557173 / 90557223 / 1R12508 / 1R12522 / AS8484 / AB1DK23H8204 / EFS8204 / AS8204 / W013588204 / 9 10-12P484 / TR8204 / AB1DK23H-8204
