8710-Air Spring-Rolling Lobe

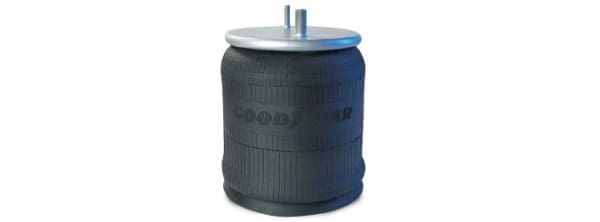

8710 Air Spring - Rolling Lobe
Piston # 9802
Top Plate Holes/Studs - Qty = 2
Bottom Plate Holes/Studs - Qty = 4
Top Plate Diameter = 10.38"
Bottom Plate Diameter = 9.38"
Bellows # 1T17CL-5
CROSS REFERENCES:
AS8710 / E-FS8710 / FS8710 /1RI3-124 / 1010-15A760 / 1010-15A760H / 1010-158S522 / 6437 / 8522 / 8710 / 8755 / 8758 / AB1DK25B / AS-8755 / AS8710 / AS8755 / CS113124 / FS8710 / FS8710 / AB1DK25B-8710
