9375-Air Spring-Rolling Lobe

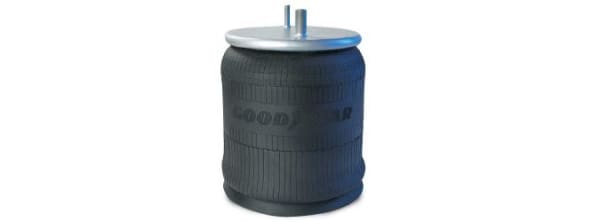

9375 Air Spring - Rolling Lobe
Piston # 9538
Piston Type - Steel
Top Plate Holes/Studs - Qty = 2
Bottom Plate Holes/Studs - Qty = 1
Top Plate Diameter = 9.00"
Bottom Plate Diameter = 10.00"
Bellows # 1T15M-8
Collapsed Height = 8.10"

CROSS REFERENCES:
364SQ27 / 57QL414M / 508991 / 508992 / 1R12404 / 1R12404 / AS8451 / W013589375 / TR9375 / AB1DK23M-9375
