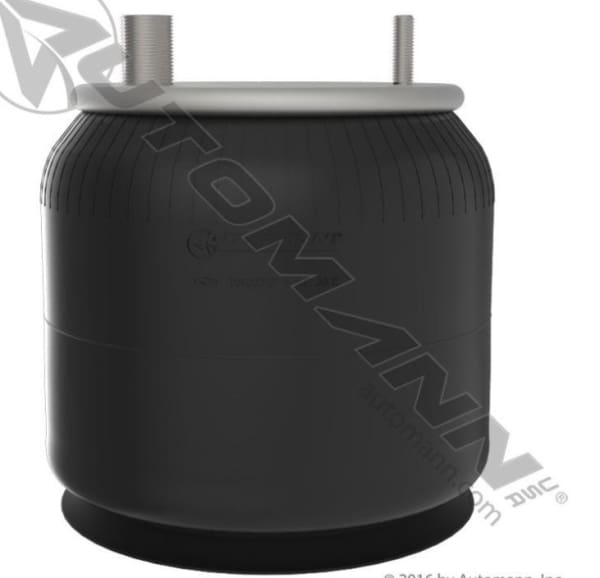

AB1DK23K-9194-Air Spring Rolling Lobe

AB1DK23K-9194-Air Spring Rolling Lobe

Specifications:
Brand: Automann Phoenix
Automann Bellows#: 1DK23K
Firestone Bellows#: 1T15M-6
Goodyear Bellows#: 566-24-3-038
Contitech Bellows#: 9 10-16
Triangle Bellows#: 6363
Load (Lbs) @80 PSI: 5710
Load (Lbs) @100 PSI: 7160
Natural Freq. (CPM): 70
Design Height (In): 13.5
Bottom Plate Type: Plastic
Top Plate Hole/Stud Qty: 2
Top Plate Dia. (A): 9
Top Plate C to C Dia. (B): 6.13
Bottom Plate Hole/Stud Qty: 5
Bottom Plate Dia. (C): 10.31
Bottom Plate C to C Dia. (D): 2.25
Bottom Part #: BS08133
Bottom Plate Alignment: Parallel
Bumper: No
Bracket: N/A
Min. Height: 6.7
Max. Height: 21.6
Max. Dia.: 12.6

CROSS REFERENCES:
Firestone: 9194/ W017039060/ W01-703-9060
Goodyear : 1R12356/ 1R12-356
Hendrickson: S13163
Peterbilt: 305107/ 03-05107
Watson&Chalin: AS0101
