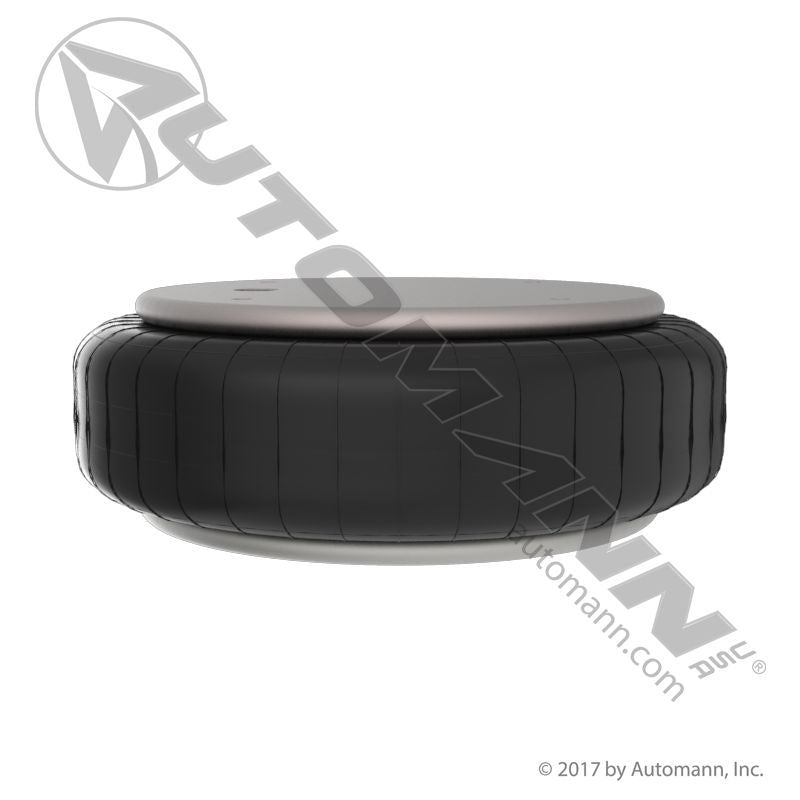

566.CT64524 - Continental Air Spring Single Convoluted
566.CT64524 - Continental Air Spring Single Convoluted
SPECIFICATIONS
Firestone Bellows# :578-91-3-351
Goodyear Bellows# : FS 530-14
Triangle Bellows# :7900
Load (Lbs) @80 PSI: 9900
Load (Lbs) @100 PSI: 120
Natural Freq. (CPM): 5.90
Top Plate Hole/Stud Qty: 5
Top Plate Dia. (A): 11.31
Top Plate C to C Dia. (B): 6.25
Bottom Plate Hole/Stud Qty: 4
Bottom Plate Dia. (C): 6.25
Bumper: YES
Min. Height: 2.40
Max. Height: 8.20
Max. Dia.: 15.90
CROSS REFERENCES
64524/ FS530-14446/ 7104/ W013587104/ 1003587104C
