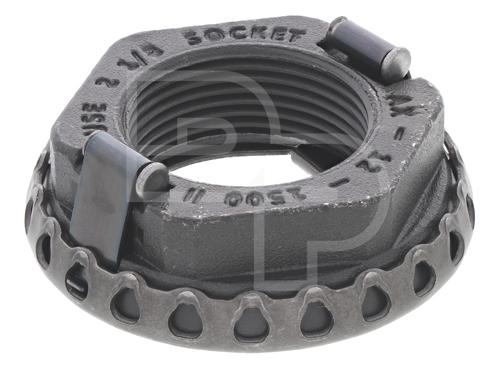

TS4121500- Axle Apindle Nut Assy.
TS4121500- Axle Apindle Nut Assy.
The first true single piece nut design delivers accurate adjustments within .001" which will extend the wheel bearing and seal service life. Adjustments are made in half the time others require. The design is superior to the three piece style jamming nut system and two piece models that require locking keepers. This nut requires only one installation tool, a six point socket & torque wrench. Available for trailer, drive and steer axles with the standard "D" flat or slotted spindles
SPECIFICATIONS
Axle Type: Steer Axle
Thread: 1-1/2" - 12
W.A.F: 2-1/2"-6
Thickness: 1.031"
Applications
Dana Spicer Trailer Axles: D10
- Eaton Trailer Axles: X115
- Fruehauf Trailer Axles: Model 5, TKF
Meritor Trailer Axles: T-1100
Standard Forge Trailer Axles: T 8.5-S
Navistar Steer Axles: I100S
Meritor Steer Axles: FD 900, FD 901, FD 961, FE 900, FE 903, FF 900, FF 901, FF 921, FF 931, FF 932, FF 933, FF 941, FF 942, FF 943, FF 944, FF 952, FF 961, FG 941
CROSS REFERENCE: 448-4836 / AX12-500
