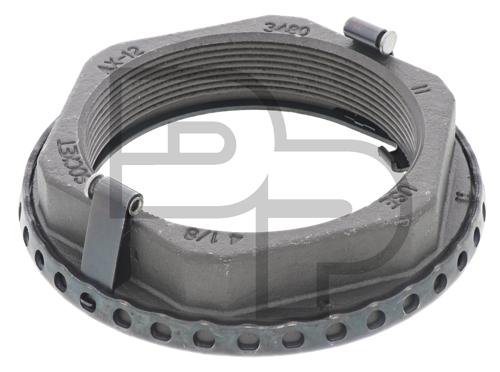

TS4123480- Trailer Axle Nut
TS4123480- Trailer Axle Nut
The first true single piece nut design delivers accurate adjustments within .001" which will extend the wheel bearing and seal service life. Adjustments are made in half the time others require. The design is superior to the three piece style jamming nut system and two piece models that require locking keepers. This nut requires only one installation tool, a six point socket & torque wrench. Available for trailer, drive and steer axles with the standard "D" flat or slotted spindles
SPECIFICATIONS
Axle Type: Trailer Axle
Thread 3-1/2 "-12
W.A.F: 4.75"-8
Thickness: 1.359"
Applications
Eaton: P22 Series
Fruehauf: Pro-Par Series
Meritor: TP Series
Spicer Axles
Hendrickson: HP
Ingersoll: F24H
CROSS REFERENCE: 447-4723 / AX12-3480
