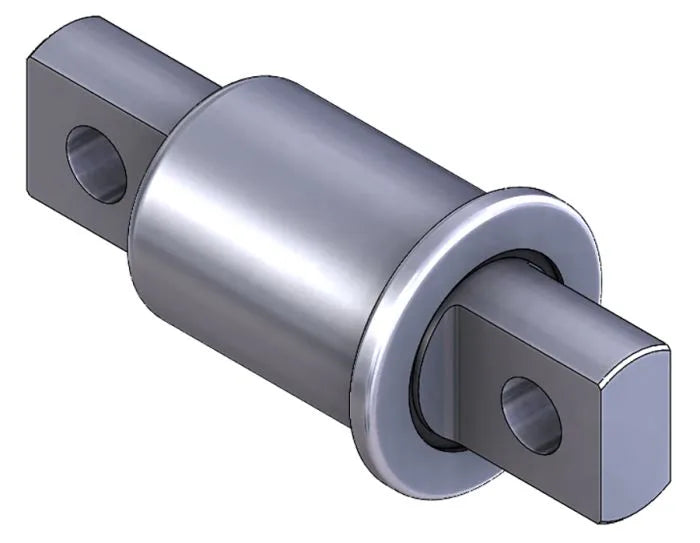

RB268- Rubber Encased Bar Pin Bushing

RB268- Rubber Encased Bar Pin Bushing

SPECIFICATIONS
Outside Diameter: 2.5"
Outer Sleeve Length: 3.25"
Flange Outside Diamter: 3.125"
>Pin Diamter: 1.8125
Pin Length: 7.5"
Center to Center Length: 5.6875"
Bolt Hole Diamter: 0.875"
Bolt Hole Center to Center Length: 5.6875"
Material: Rubber
Type: Straddle

CROSS REFERENCE: RB-268, RB268, MR782, A1616412, 52296, 52039, 358115C1, 1616412001, 1618035000
