Buyers-SALTDOGG-14710F381211-3.2 Cubic Yard Gas Engine Stainless Steel Mid-Size Hopper Spreader
SALTDOGG 14710F381211 - 3.2 Cubic Yard Gas Engine Stainless Steel Mid-Size Hopper Spreader
Designed for dump bodies and flatbeds with a minimum 13,000 lb GVW.
Powered by a 10-1/2 HP Briggs and Stratton Intek industrial/commercial engine with an included battery for electric start.
Spreads bulk salt, bulk sand, or a salt/sand mix.
Versatile 14-1/2 in. chain conveyor drive with 1/4 in. crossbars.
18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute.
Two chute baffles allow you to adjust the spread pattern to your application.
High quality, 304 stainless steel construction for optimum corrosion resistance.
Stainless steel inverted V improves flow and reduces stress on the drive line and improves flow
Four hinged top screens with 1/4 in. bars included.
Made in the USA.

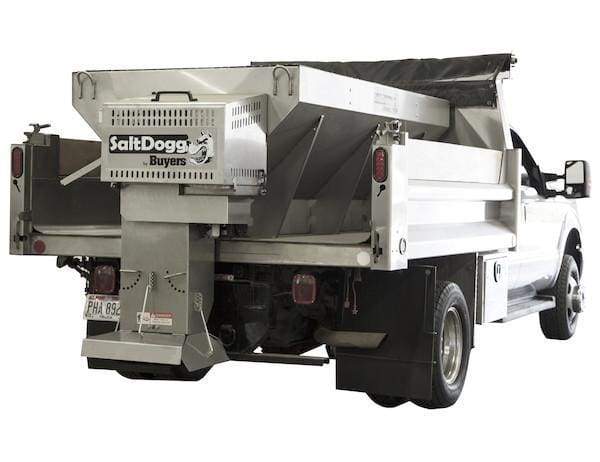

- Spreader is shown with optional light bar (8891144) , and pre-wet system (LS1) which are sold separately.
- Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader powered by 10-1/2 HP Briggs and Stratton Intek Industrial/Commercial gas engine, with in-cab electric start throttle control. The spreader combines the power of a gas engine with modern spreader conveniences. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix. The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader.
- The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. The high-torque conveyor gearbox has a 20:1 ratio with a 1 in. input shaft and 1-1/8 in. output shaft on tapered roller bearings to provide extra power on startup. A SaltDogg Spreader is built to last. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control.
- The spreader comes equipped with a 12V electric clutch and in-cab, three position momentary switch and throttle. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.
- Property Maintenance, Residential Commercial, Parking Lots, Sidewalks
SPECIFICATIONS:
Chute Primary Material = 304 Stainless Steel
ChuteStandardAdjustableExtended = Adjustable
Controller Type = In-Cab Throttle/Choke
Drive Type = Gas
Hopper Length = 120.00"
Hopper Material = 304 Stainless Steel
Number Of Motors = 1
Spinner Material = Polyurethane
Works With Bagged #1 Rock Salt = Yes
Works With Bulk Salt = Yes
Works With Bulk Sand = Yes
Works With Salt/Sand Mix = Yes
Capacity = 3.2 yd
Overall Height = 38.00"
Overall Length = 140.00"
Overall Width (At Top) = 58.00"
Hopper Width = 58.00"
Top Screen = Yes
Drive Motor Horse Power = 10.50 HP
Vibrator Included? = No
Spinner Diameter = 18.00"
Spreading Width Range = 2 To 40 Feet
Feed Mechanism = Conveyor Chain
Feed Mechanism2 = 14-1/2 in. Pintle Chain with 1/4in. Bars
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
Wiring Diagram for SaltDogg Gas Spreaders:
wiring_diagram_gas_spreader.pdf (buyersproducts.com)
MidX Chain, Gas Drive, Stainless Steel Spreader Manual:
