Buyers-SALTDOGG-1400601SS-2 Cubic Yard Electric Stainless Hopper Spreader
SALTDOGG-1400601SS - 2 Cubic Yard Electric Stainless Hopper Spreader
Fits extended-bed 1 ton trucks with above 10,000 lb GVW (gross vehicle weight)
Available with 96 in. hopper with a capacity of 2 cubic yards.
Conveyor and spinner powered by independent electric motors.
Spreads bulk salt or a 50/50 salt/sand mix.
In-cab controls with independent variable speeds for the conveyor and spinner.
14 in. poly spinner broadcasts up to 30 ft
12 in. chain conveyor drive.
Chute is adjustable up to 11-1/2 in.
High quality 304 stainless steel construction for optimum corrosion resistance. Stainless steel inverted V improves flow and reduces stress on the drive line.
Top screen and tie downs included.
Made in the USA.

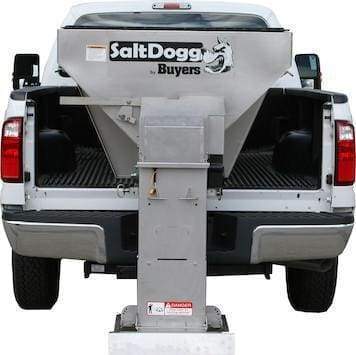

Buyers Products SaltDogg 2 Cubic Yard Electric Stainless Hopper Spreader is ready for commercial use. The 8 ft spreader can fit in the back of an extended-bed 1 ton truck and will work with bulk salt or a 50/50 salt/sand mix. Its electric-powered design means quieter operation with no need for refueling or engine servicing.
The hopper and fully-welded frame are made from long lasting, corrosion resistant 304 stainless steel. A 12 in. wide, all steel pintle chain conveyor provides high speed material flow with its independent 3/4 HP, 12V gear motor.
A lever-operated feedgate offers additional material flow control. A six-fin, 14 in. poly spinner powered by an independent 1/2 HP, 12V motor can cast material 5-30 ft. The stainless steel chute can be extended an extra 11-1/2 in. if needed.
The spreader is operated by an intuitive heavy duty in-cab controller with independent spinner and conveyor speeds. The spreader also comes outfitted with a top screen, stainless steel inverted V, and tie down kit.
Product Common Use Parking Lots, Driveways, Commercial Property Maintenance, Residential Upkeep
SPECIFICATIONS:
Chute Primary Material : 304 Stainless Steel
ChuteStandardAdjustableExtended =Adjustable Height
High Current Variable Speed
Drive Type = Electric
Hopper Length = 96.00"
Hopper Material: 304 Stainless Steel
Number Of Motors =2
Spinner Material = Polyurethane
Works With Bagged #1 Rock Salt = Yes
Works With Bulk Salt = Yes
Works With Bulk Sand = Yes
Works With Salt/Sand Mix = Yes
Capacity: 2.00 yd
Overall Height = 32.00"
Overall Length : 110.80"
Overall Width (At Top) : 47.00"
Hopper Width : 47.00"
Top Screen = Yes
Drive Motor Horse Power = 0.75HP
Spinner Motor Horse Power 0.50 HP
Vibrator Included? No
Spinner Diameter = 14.00"
Spreading Width Range = 5 To 30 Feet
System Voltage = 12 VDC
Feed Mechanism: Conveyor Chain
Feed Mechanism2 : 12 in. Pintle Chain Conveyor
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
Owners Manual for SaltDogg® 1400601SS/1400701SS Spreaders (Adjustable chute with one bearing): https://pimimages.buyersproducts.com/products/Documents/3018352_D.pdf
Old Owners Manual for SaltDogg® 1400601SS/1400701SS Spreaders (Adjustable chute with one bearing):
https://pimimages.buyersproducts.com/products/Documents/3018352_C.pdf
Old Owners Manual for SaltDogg® 1400601SS/1400701SS Spreaders (Adjustable Chute with Two Bearings):
https://pimimages.buyersproducts.com/products/Documents/3018352_B.pdf
Old Owners Manual for SaltDogg® 1400600SS/1400700SS Spreaders (Non-Adjustable Chute):
https://pimimages.buyersproducts.com/products/Documents/3017449_A.pdf
Error Codes for 3016934 Spreader Controller: https://pimimages.buyersproducts.com/products/Documents/3016934%20Error%20Codes.pdf
