Buyers-SALTDOGG-14709F461211-9 Ft. X 46 In. Gas Chain 304 Stainless Steel Spreader
SALTDOGG 14709F461211- 9 Ft. X 46 In. Gas Chain 304 Stainless Steel Spreader
Designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight).
High quality, 304 stainless steel construction for optimum corrosion resistance.
Powered by a 10-1/2 HP Briggs and Stratton Intek Industrial/commercial engine with an included battery for electric start.
Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix.
In-cab controls with independent variable speeds for the conveyor and spinner.
18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute.
Versatile 14-1/2 in. chain conveyor drive with 1/4 in. crossbars.
Two chute baffles allow you to adjust the spread pattern to your use.
Stainless steel inverted V reduces stress on the drive line and improves flow.
Four hinged top screens with 1/4 in. bars included.

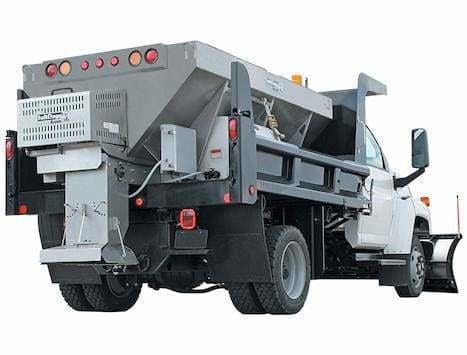

Spreader is shown with optional light bar (8891144) , and pre-wet system (LS1) which are sold separately.
Made in the USA.
Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader powered by 10-1/2 HP Briggs and Stratton Intek Industrial/Commercial gas engine, with in-cab electric start throttle control. The spreader combines the power of a gas engine with modern spreader conveniences. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix. The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader.
The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. The high-torque conveyor gearbox has a 20:1 ratio with a 1 in. input shaft and 1-1/8 in. output shaft on tapered roller bearings to provide extra power on startup. A SaltDogg Spreader is built to last. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control..
The spreader comes equipped with a 12V electric clutch and in-cab, three position momentary switch and throttle. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.
Spreader is shown with optional light bar (8891144) and pre-wet system (LS1) which are sold separately.
Product Common Use: Salt Spreaders, Municipal Spreaders, Road and Highway Maintenance
SPECIFICATIONS:
Chute Primary Material: 304 Stainless Steel
ChuteStandardAdjustableExtended: Adjustable Height
Controller Type: In-Cab Throttle/Choke
Drive Type: Gas
Hopper Length: 108.00 "
Hopper Material: 304 Stainless Steel
Number Of Motors : 1
Spinner Material: Polyurethane
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Salt: Yes
Works With Bulk Sand : Yes
Works With Salt / Sand Mix: Yes
Capacity : 4.00 yd³
Overall Height: 46.00 "
Overall Length: 128.00 "
Overall Width (At Top) 70.00 "
Hopper Width: 70.00 "
Top Screen: Yes
Vibrator Included? No
Spinner Diameter: 18.00 "
Spreading Width Range: 2To 40
Feed Mechanism : Conveyor Chain
Feed Mechanism2: 14 1/2 in. Pintle Chain with 1/4in. Bars
Wiring Diagram for SaltDogg Gas Spreaders: https://pimimages.buyersproducts.com/products/Documents/wiring_diagram_gas_spreader.pdf
MidX Chain, Gas Drive, Stainless Steel Spreader Manual: https://pimimages.buyersproducts.com/products/Documents/3050053_A.pdf
Designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight).
High quality, 304 stainless steel construction for optimum corrosion resistance.
Powered by a 10-1/2 HP Briggs and Stratton Intek Industrial/commercial engine with an included battery for electric start.
Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix.
In-cab controls with independent variable speeds for the conveyor and spinner.
18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute.
Versatile 14-1/2 in. chain conveyor drive with 1/4 in. crossbars.
Two chute baffles allow you to adjust the spread pattern to your use.
Stainless steel inverted V reduces stress on the drive line and improves flow.
Four hinged top screens with 1/4 in. bars included.
Spreader is shown with optional light bar (8891144) , and pre-wet system (LS1) which are sold separately.
Made in the USA.
Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader powered by 10-1/2 HP Briggs and Stratton Intek Industrial/Commercial gas engine, with in-cab electric start throttle control. The spreader combines the power of a gas engine with modern spreader conveniences. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix. The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader.
The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. The high-torque conveyor gearbox has a 20:1 ratio with a 1 in. input shaft and 1-1/8 in. output shaft on tapered roller bearings to provide extra power on startup. A SaltDogg Spreader is built to last. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control..
The spreader comes equipped with a 12V electric clutch and in-cab, three position momentary switch and throttle. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.
Spreader is shown with optional light bar (8891144) and pre-wet system (LS1) which are sold separately.
Product Common Use: Salt Spreaders, Municipal Spreaders, Road and Highway Maintenance
SPECIFICATIONS:
Chute Primary Material: 304 Stainless Steel
ChuteStandardAdjustableExtended: Adjustable Height
Controller Type: In-Cab Throttle/Choke
Drive Type: Gas
Hopper Length: 108.00 "
Hopper Material: 304 Stainless Steel
Number Of Motors : 1
Spinner Material: Polyurethane
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Salt: Yes
Works With Bulk Sand : Yes
Works With Salt / Sand Mix: Yes
Capacity : 4.00 yd³
Overall Height: 46.00 "
Overall Length: 128.00 "
Overall Width (At Top) 70.00 "
Hopper Width: 70.00 "
Top Screen: Yes
Vibrator Included? No
Spinner Diameter: 18.00 "
Spreading Width Range: 2To 40
Feed Mechanism : Conveyor Chain
Feed Mechanism2: 14 1/2 in. Pintle Chain with 1/4in. Bars
Wiring Diagram for SaltDogg Gas Spreaders: https://pimimages.buyersproducts.com/products/Documents/wiring_diagram_gas_spreader.pdf
MidX Chain, Gas Drive, Stainless Steel Spreader Manual: https://pimimages.buyersproducts.com/products/Documents/3050053_A.pdf
