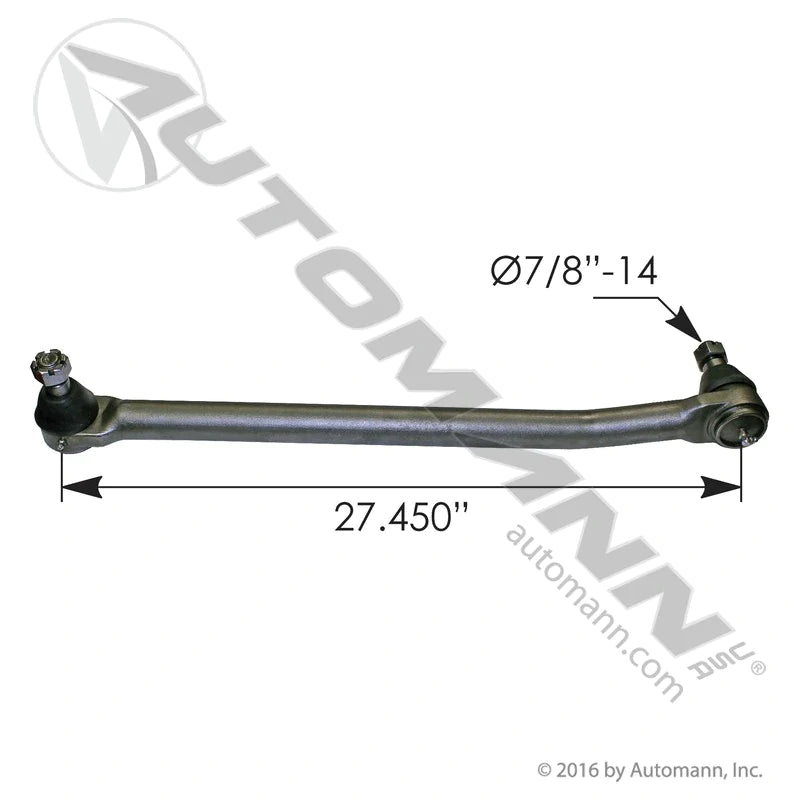

463.DS1444 - Drag Link 27.450in C to C Ford/Sterling

463.DS1444 - Drag Link 27.450in C to C Ford/Sterling

SPECIFICATIONS
Length: 27.450"
Shaft Diameter: 1.654
Shaft Side Thread (E): 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B): 0.968”
Taper Pin Major Dia.-1 (C): 1.108”
Taper Pin Minor Dia.-2 (B): 1.080”
Taper Pin Major Dia.-2 (C): 1.256”
Taper Pin Length-1 (D: 1.122”
Taper Pin Thread-1 (E): 7/8”-14
Taper Pin Length-2 (D): 1.408”
Taper Pin Thread-2 (E): 7/8”-14

CROSS REFERENCE> F6HT3304AA/ F6HZ3304AA/ F6HZ3305BA/ DS1444/ L24VU8105A11/ L24VU8105B11
