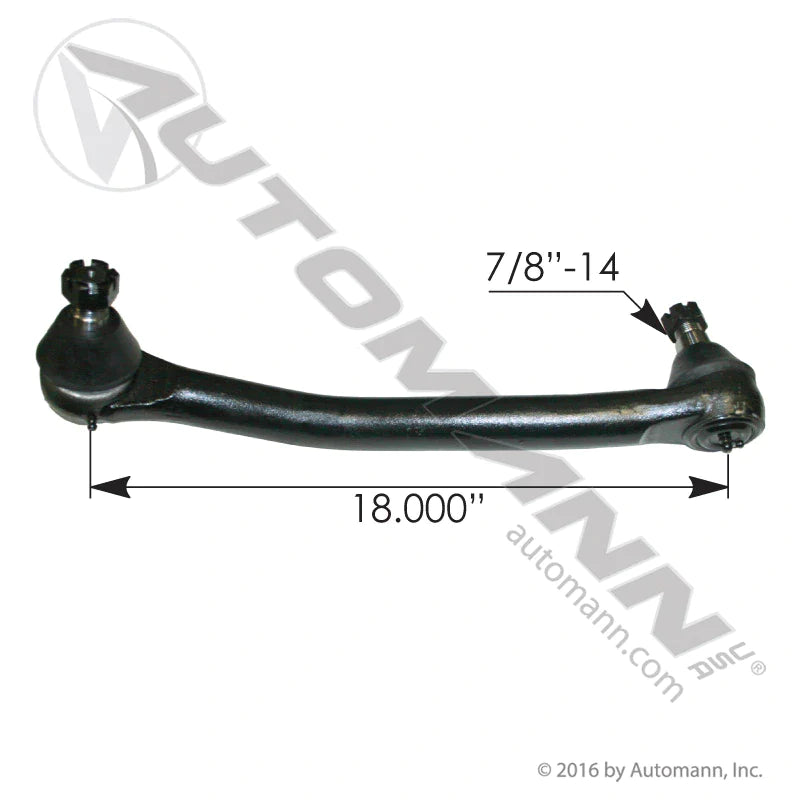

463.DS4333- Drag Link 18.000in C to C Ford
463.DS4333- Drag Link 18.000in C to C Ford
SPECIFICATIONS
Length 18.000"
Shaft Diameter: 1.665"
Shaft Side Thread (E): 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B): 1.080”
Taper Pin Major Dia.-1 (C): 1.250”
Taper Pin Length-1 (D):1.360"
Taper Pin Thread-1 (E): 7/8-14"
Taper Pin Length-2 (D): 1.102”
CROSS REFERENCE> F8HT3304AB/ F8HZ3304AA
