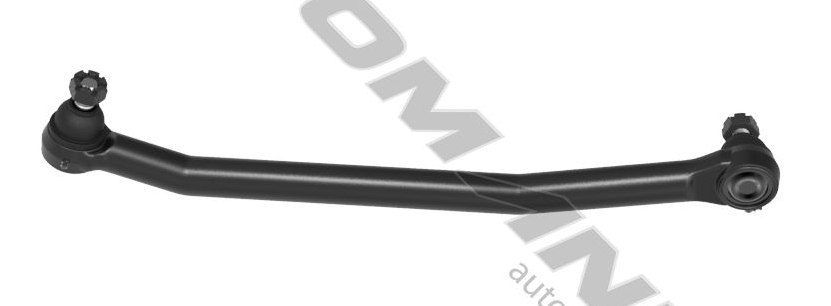

463.DS4626 - Drag Link 27.500in C to C Freightliner
463.DS4626 - Drag Link 27.500in C to C Freightliner
SPECIFICATIONS
Length 27.500"
Shaft Diameter: 1.623"
Shaft Side Thread (E): 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B): .783”
Taper Pin Major Dia.-1 (C): .906”
Taper Pin Length-1 (D): 1.003"
Taper Pin Thread-1 (E): 3/4"-16
CROSS REFERENCE 1417266000
