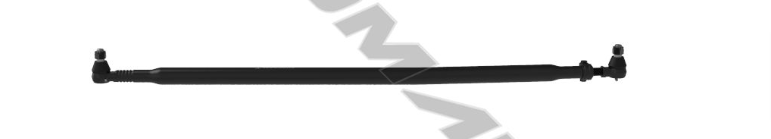

463.DS5593 - Drag Link 59.500in C to E IHC

463.DS5593 - Drag Link 59.500in C to E IHC

DESCRIPTION
C to C: 41.750""
E to E (A): 14.5"
Shaft Diameter (A): 2.125"
Male/Female: Male
Shaft Side Thread: 1-1/8"-12 (RH)
Taper Pin Minor Dia.-1 (B): 0.967"
Taper Pin Major Dia.-1 (C: 1.102"
Taper Pin Thread-1 (E): 7/8"-14

APPLICATION
International: FOR 3000 BUS CHASSIS AFTER 5-23-97
3000 RE BUS AFTER 11-1-99
AMTRAN RE BUS BEFORE 11-1-99
RE 300 BUSES AND SFC COMMERICAL BUS CHASSIS
br>
CROSS REFERENCE: 3511195C91
