B16140Z- Buyers Zinc Plated 10-Ton Forged Steel Tow Eye 3 Inch I.D.
B16140Z- Buyers Zinc Plated 10-Ton Forged Steel Tow Eye 3 Inch I.D.
DESCRIPTION

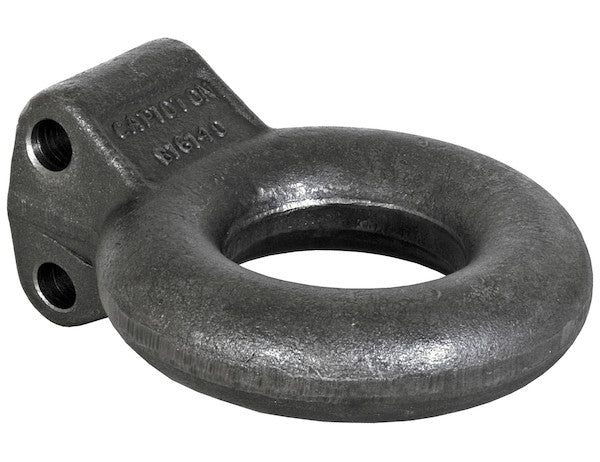

The 10 Ton Forged Steel Tow Eye from Buyers Products is designed to be bolted into an adjustable channel bracket. This allows you to position the tow eye or lunette for level towing.
Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck.
The eye has an interior diameter of 3 in. and is made of rugged forged steel to handle a maximum gross towing weight of 20,000 lb. Available in a corrosion-resistant zinc-plated finish or with no finish.
SPECIFICATIONS
Color: Silver
Finish: Zinc Plated Clear
Material: Forged Steel cm
Eye Inner diameter: 3.00"
Eye Outer diameter: 6.25"
M.G.T.W: 50,000 lb
M.V.L.: 2,000 lb
Mounting Hole Diameter: 0.656"
Vertical Hole Spacing: 2.00"
Drawbar Section: 1.625"
