B16145- Buyers Plain 12.5 Ton Forged Steel Tow Eye 3 Inch I.D.
B16145- Buyers Plain 12.5 Ton Forged Steel Tow Eye 3 Inch I.D.
DESCRIPTION

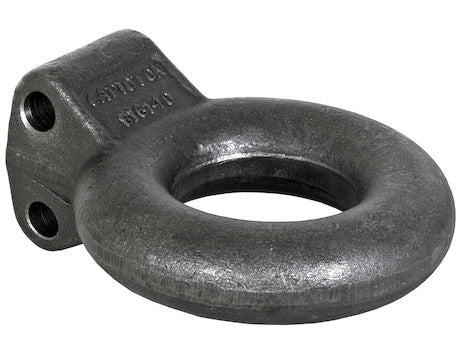

The Forged Steel Tow Eyes from Buyers Products are designed to be bolted into an adjustable channel bracket. This allows you to position the tow eye or lunette for level towing.
Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck.
The eye has an interior diameter of 3 in. and is made of rugged forged steel to handle a maximum gross towing weight of 25,000 lb. Available in a corrosion-resistant zinc-plated finish or with no finish.
SPECIFICATIONS
Color: None
Material: Forged Steel
Finish: Plain
Eye Inner Diameter: 3.00"
Eye Outer Diameter: 6.25"
M.G.T.W: 25000 lb
M.V.L.: 3000 lbs
Mounting Hole Diameter: 0.656"
Vertical Hole Spacing: 2.00"
Drawbar Section: 1.625"
