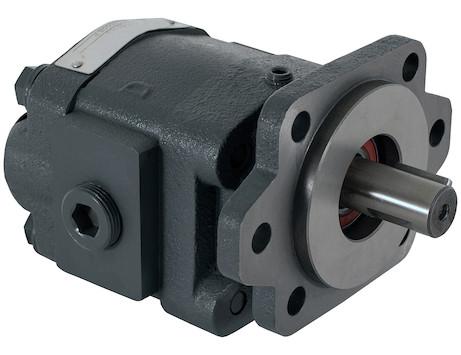

Buyers- H2136173- Hydraulic Gear Pump With 1 Inch Keyed Shaft And 1-3/4 Inch Diameter Gear
Buyers- H2136173- Hydraulic Gear Pump With 1 Inch Keyed Shaft And 1-3/4 Inch Diameter Gear
Built tough of cast iron with teflon-coated bronze thrustplates.
Structural integrity supported by four internal dowels and a shaft bearing.
High-pressure rated -- can take a maximum 2500 or 3000 PSI.
The H21 Series Hydraulic Gear Pump with Keyed Shaft from Buyers Products is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount.
The pump is built tough of cast iron with Teflon-coated bronze thrust plates. Four internal dowels work to protect its structural integrity. Its input shaft is supported by a heavy duty bearing.
Choose from a range of models with flow rates from 11.3 to 15.3 at 1000 RPM. The pumps are capable of higher pressures, taking up to 2500 or 3000 PSI.
All of the models feature a 1 in. keyed shaft.
Product Common Use: Truck and Trailer Hydraulic Systems
SPECIFICATIONS
Displacement: 3 in.³/r
Displacement: 13 GPM
Gear Width: 1.750 "
Input Mount Type: Integral Bracket
Material: Cast Iron
Maximum Rotations Per Minute (RPM) 2000 RPM
Mount Type: SAE B 2/4 Bolt
Pilot Diameter: 4.00 "
Shaft Size: 1
Shaft Type: Round/Keyed
Ports (Rear/Side) Rear/Side
Inlet Port Size : 1 -1/4NPT
Maximum Pressure: 2500 PSI
Direct Or Remote Mount: Remote Mount
Outlet Port Size: 1-1/4 NPT
Rotation: Bi-Directional
Gear Size: 1.75"
Flow At 600 RPM: 7.8 GPM
Flow At 1000 RPM: 11.3 GPM
Flow At 1800 RPM: 20.34 GPM
Flow At900 RPM: 11.7 GPM
Flow At 1200 RPM: 15.06 GPM
Flow At 1500 RPM: 19.5 GPM
Flow At 2100 RPM: 23.73 GPM
Rear Port Size :1 NPT
Suction Port Size: 1-1/4 NPT
