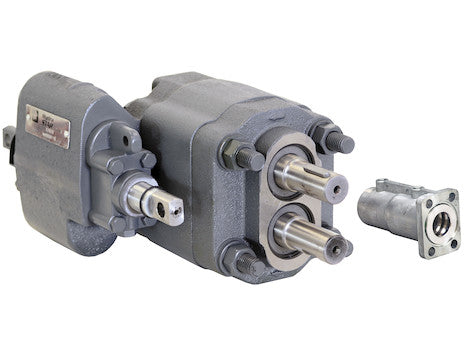

C1010AS -Buyers Remote Mount Hydraulic Pump With AS301 Air Shift Cylinder Included

C1010AS -Buyers Remote Mount Hydraulic Pump With AS301 Air Shift Cylinder Included

DESCRIPTION
The Remote Mount Hydraulic Dump Pump with Air Control from Buyers Products is a compact and efficient source of hydraulic power for your vehicle. It is designed for dump operations with 2 or 3 line plumbing and has pneumatically-controlled shift operations.
The air shift cylinder is included. The bracket is sold separately.

SPECIFICATIONS
Displacement: 6 in 3/r
Flow: 25 GPM
Gear Width: 2.500"
Imput Mount Type: Frame Mountt
Material: Cast Iron
Maximum Rotations Per Minute (RPM): 2000 RPM
Mount Type: Frame Mount
Pilot Diameter: 4.00"
Shaft Size: 1
Shaft Type: Round/Keyed
Ports(Rear/Side): Rear
Inlet Port Size: 1-1/2 NPT
Maximum Pressure: 2500 PSI
Direct or Remote Mount: Remote Mount
Outlet Port Size: 1 NPT
Rotation: Clockwise or Counterclockwise
Gear Size: 2.500"
Flow At 600 RPM: 13 GPM
Flow At 1000 RPM: 25 GPM
Flow At 1800 RPM: 46 GPM
Flow At 900 RPM: 21 GPM
Flow At 1200 RPM: 33 GPM
Flow At 1500 RPM: 37.5 GPM
Rear Port Size: 1 NPT
SuctionPort Size 1 -1/2 NPT
