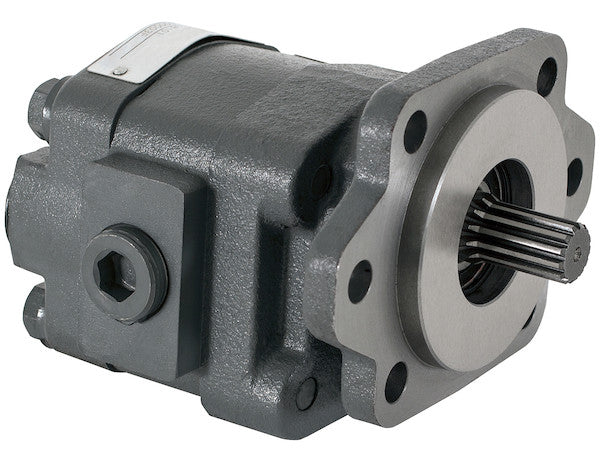

H2136151 -Buyers Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-1/2 Inch Diameter Gear

H2136151 -Buyers Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-1/2 Inch Diameter Gear

DESCRIPTION
The H21 Series Hydraulic Gear Pump with Spline Shaft from Buyers Products is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount. The pump is built tough of cast iron with teflon-coated bronze thrust plates. Four internal dowels work to protect its structural integrity.
All of the models feature a 7/8 in. by 13 spline shaft.

SPECIFICATIONS
Displacement: 3 in 3/r
Flow: 11 GPM
Gear Width: 1.500"
Imput Mount Type: Integral Bracket
Material: Cast Iron
Maximum Rotations Per Minute (RPM): 2000 RPM
Mount Type: SAE B 2/4 Bolt
Pilot Diameter: 4.00"
Shaft Size: 7/8-13
Shaft Type: Splined
Ports(Rear/Side): Rear/Side
Maximum Pressure: 3000 PSI
Direct or Remote Mount: Direct Mount
Outlet Port Size: 1 NPT
Rotation: Bi-Directional
Gear Size: 1.5"
Flow At 600 RPM: 6.78 GPM
Flow At 1000 RPM: 11.3 GPM
Flow At 1800 RPM: 20.34 GPM
Flow At 900 RPM: 10.17 GPM
Flow At 1200 RPM: 13.56 GPM
Flow At 1500 RPM: 16.95 GPM
Flow At 2100 RPM: 23.73 RPM
Rear Port Size: 1 NPT
Suction Port Size 1 NPT
