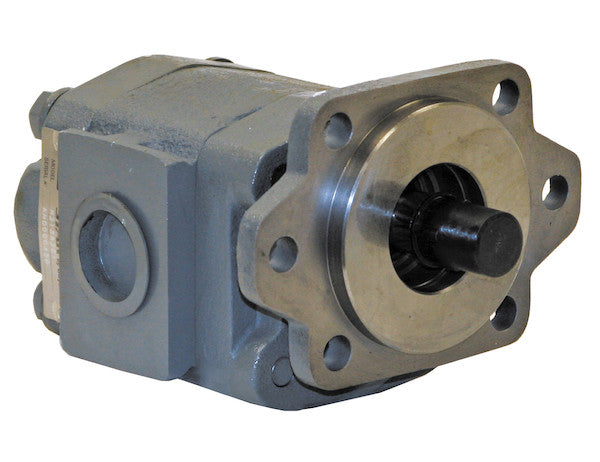

H2136201 -Buyers Hydraulic Gear Pump With 7/8-13 Spline Shaft And 2 Inch Diameter Gear

H2136201 -Buyers Hydraulic Gear Pump With 7/8-13 Spline Shaft And 2 Inch Diameter Gear

DESCRIPTION
The H21 Series Hydraulic Gear Pump with Spline Shaft from Buyers Products is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount. The pump is built tough of cast iron with teflon-coated bronze thrust plates. Four internal dowels work to protect its structural integrity.
All of the models feature a 7/8 in. by 13 spline shaft.

SPECIFICATIONS
Displacement: 4 in 3/r
Flow: 15 GPM
Gear Width: 2.000"
Imput Mount Type: Integral Bracket
Material: Cast Iron
Maximum Rotations Per Minute (RPM): 2000 RPM
Mount Type: SAE B 2/4 Bolt
Pilot Diameter: 4.00"
Shaft Size: 7/8-13
Shaft Type: Splined
Ports(Rear/Side): Rear/Side
Inlet Port Size: 1-1/4 NPT
Maximum Pressure: 2500 PSI
Direct or Remote Mount: Direct Mount
Outlet Port Size: 1 -1/4 NPT
Rotation: Bi-Directional
Gear Size: 2.00"
Flow At 600 RPM: 9.0 GPM
Flow At 1000 RPM: 15 GPM
Flow At 1800 RPM: 27 GPM
Flow At 900 RPM: 13.5 GPM
Flow At 1200 RPM: 18.36 GPM
Flow At 1500 RPM: 22.5 GPM
Flow At 2100 RPM: 31.5 RPM
Rear Port Size: 1 NPT
Suction Port Size 1 -1/4 NPT
