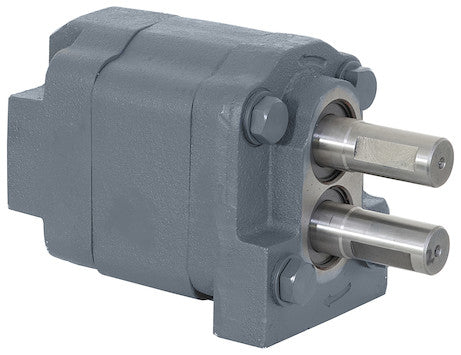

HDS36255 -Buyers Dual Shaft Hydraulic Pump With 2-1/2 Inch Diameter Gear

HDS36255 -Buyers Dual Shaft Hydraulic Pump With 2-1/2 Inch Diameter Gear

DESCRIPTION
The Dual Shaft Hydraulic Pump from Buyers Products is excellent for powering continuous duty operations such as refuse collection.
The pump is built tough of cast iron. A double shaft design allows for a maximum operating pressure of 2500 PSI while doing continuous duty. It can reach a maximum 1800 RPM.
The pump is bi-rotational and is available in a 2 in. and 2-1/2 in. gear size.

SPECIFICATIONS
Displacement: 6 in 3/r
Flow: 27 GPM
Gear Width: 2.500"
Imput Mount Type: Integral Bracket
Material: Cast Iron
Mount Type: Frame Mount
Shaft Size: 1.125
Shaft Type: Round/Keyed
Ports(Rear/Side): Rear
Inlet Port Size: 1-1/2 NPT
Maximum Pressure: 2500 PSI
Direct or Remote Mount: Remote Mount
Outlet Port Size: 3/4 SAE ORB (-12)
Rotation: Clockwise or Counterclockwise
Gear Size: 2.500"
Rear Port Size: 3/4 SAE ORB (-12)
SuctionPort Size 1 -1/2 NPT
