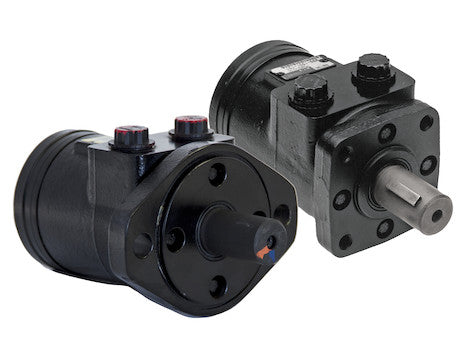

HM074P- Buyers Hydraulic Motor With 4-Bolt Mount/NPT Threads And 17.9 Cubic Inches Displacement
HM074P- Buyers Hydraulic Motor With 4-Bolt Mount/NPT Threads And 17.9 Cubic Inches Displacement
DESCRIPTION
Char-Lynn Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact, and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.
The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate.
Choose from a wide range of motors depending on your needs for flow rates, torque, and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
Product Common Use: Truck and Trailer Hydraulic Systems
SPECIFICATIONS
Compares To: 101-1007-009
Flow (Continuous): 15 GPM
Input Mount Type: 4 Bolt
Material: Cast Iron
Maximum Case Pressure (Without Case Drain): 1500 PSI
Maximum Speed (Continuous): 192 RPM
Pilot Diameter: 1.75"
Shaft Keyway: 0.25"
Shaft type: Straight
Displacement: 17.9"
Flow (Intermittent): 20 GPM
Torque Rating (Continuous): 3100 Inch Pound
Torque Rating (Intermittent): 3430 Inch Pound
Port size: 1/2 NPT
Shaft Size: 1.00"
Maximum Speed At Continuous Flow: 192 RPM
Maximum Speed At Intermittent Flow: 256 RPM
Minimum Starting Torque (Continuous Pressure): 2500 Inch Pound
Minimum Starting Torque (Intermittent Pressure): 3430 Inch Pound
Pressure ? Bar (Continuous): 1800 PSI
Pressure ? Bar (Intermittent): 2400 PSI
Crossover Guide: https://pimimages.buyersproducts.com/products/Documents/HM%20Hydraulic%20Motors%20Brand%20Cross%20Reference.pdf
