22-315HD-Chevy/GMC Helper Spring, (product_type), (product_vendor) - Nick's Truck Parts

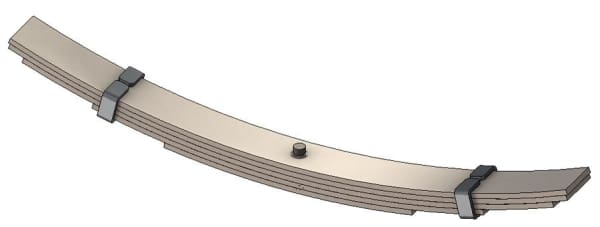

22-315HD-Chevy/GMC Helper Spring

$ 108.66

Rear Helper Spring

DIMENSIONS:
Width: 3 in.
Short End (A) Dimension = 19-1/2 in.
Long End (B) Dimension = 19-1/2 in.
Leaves: 5
Leaf Arrangement = 5/341
A End - SLIP
B End - SLIP
Arch: 3-5/8 in.
Capacity:2800 lbs.

APPLICATIONS:
Chevy B
C
P amp; S Series (1690 - 1990)
Chevy C40 - C80 (1960 - 1990)
Chevy S40 - S70 (1960 - 1991)
Chevy B60 (1960 - 1991)
Chevy P40 - P60 (1965 - 1990)
Chevy Kodiak
Topkick (1990 - 2002)Chevy T40 - T95 Tilt Cabs (1963 - 1978)
Chevy W60 - W70 Tilt Cabs (1979 - 1980)
Chevy T5500 - T8500 (1997 - 2006)
Chevy Titan / Astro (1968 - 1988)
Chevy H70 / 75 amp; H90 / 95 (1966 - 1978)
Chevy Bruin. / Brigadier (1979 - 1990)
Chevy C95 (1966 - 1972)
Chevy Bison / General (1979 - 1988)
Isuzu FSR
FTR
FVR amp; FXR (1975 - 2005)
