22-403-Chevy/GMC Spring, (product_type), (product_vendor) - Nick's Truck Parts

22-403-Chevy/GMC Spring

$ 167.81

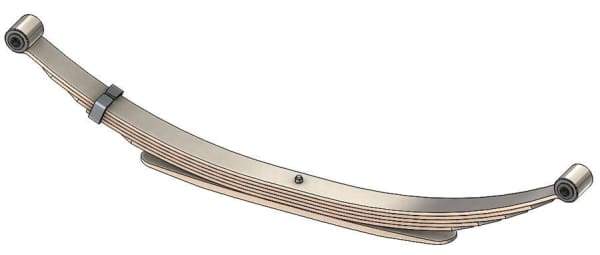

Rear Spring

DIMENSIONS:
Width: 2-1/2 in.
Short End (A) Dimension : 26 in.
Long End (B) Dimension = 26 in.
Leaves: 5/1
Leaf Arrangement: 5/323
1/625
A End - RB-117
B End - RB-117
Arch: 6-3/4 in.
Capacity:2350 lbs.

APPLICATIONS:
Blazer / Jimmy (1969 - 1988)
Suburban (1969 - 1972)
C20 / 2500
C30 / 3500
K10 / 1500 (1969 - 1972)
P20 / 2500
P30 / 3500 Motorhome (1969 - 1976)
P10 / 1500
P20 / 2500 (1973 - 1989)

CROSS REFERENCES:
3941764 / 3941764
