22-419-Chevy/GMC Spring, (product_type), (product_vendor) - Nick's Truck Parts

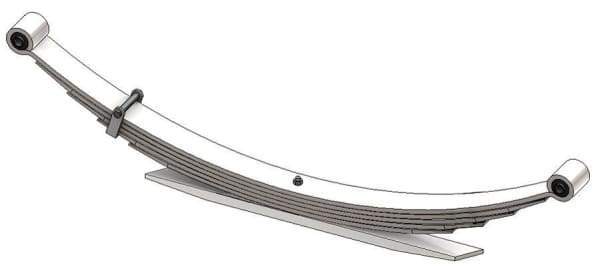

22-419-Chevy/GMC Spring

$ 212.07

Rear Spring

DIMENSIONS:
Width: 2-1/2 in.
Short End (A) Dimension = 26 in.
Long End (B) Dimension = 26 in.
Leaves: 6/1
Leaf Arrangement: 5/360
1/323
1/702
A End - RB-117
B End - RB-117
Arch: 6-5/8 in.
Capacity:3390 lbs.

APPLICATIONS:
C20 / 2500
C30 / 3500
K10 / 1500 (1969 - 1972)
P20 / 2500
P30 / 3500 Motorhome (1969 - 1972)

CROSS REFERENCES:
3955572 / 3955572
