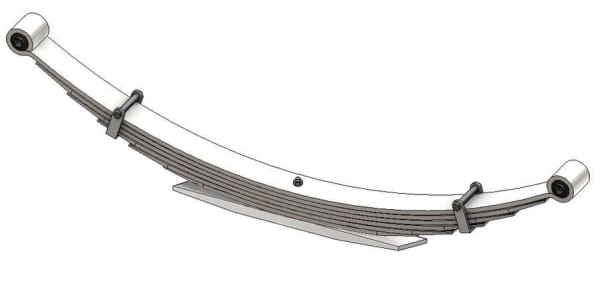

22-489-Chevy/GMC Spring

$ 192.06

Rear Spring

DIMENSIONS:
Width: 2-1/2 in.
Short End (A) Dimension = 26 in.
Long End (B) Dimension = 26 in.
Leaves: 6/1
Leaf Arrangement = 1/323
5/307
1/770
A End - RB-117
B End - RB-117
Arch: 6-1/4 in.
Capacity: 2775 lbs.

APPLICATIONS:
P20 / 2500
P30 / 3500 Motorhome (1969 - 1976)
P10 / 1500
P20 / 2500 (1973 - 1989)
Workhorse P Series (2000 - 2006

CROSS REFERENCES:
15151112 / 15151112
