22-801-Chevy/GMC Single Leaf Helper Spring, (product_type), (product_vendor) - Nick's Truck Parts

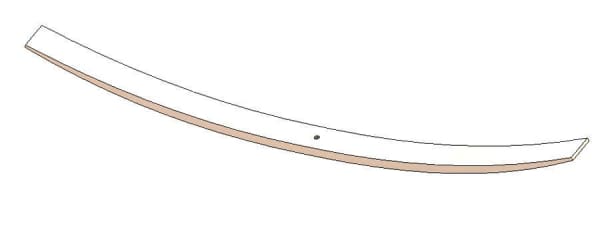

22-801-Chevy/GMC Single Leaf Helper Spring

$ 73.89

Rear Helper Spring

DIMENSIONS:
Width: 2-1/2 in.
Short End (A) Dimension = 24-5/8 in.
Long End (B) Dimension = 24-5/8 in.
Leaves: 1/PD
Leaf Arrangement: 1/674
1/820
A End - SLIP
B End - SLIP
Arch: 4-3/8 in.
Capacity: 575 lbs.

APPLICATIONS:
C3500 (1988 - 2000)
K3500 (1988 - 2000)

CROSS REFERENCES:
15529585 / 15567937 / 15659390 / 15529585 / 15567937
