22-835- Tapered Two-Stage Leaf Spring - Nick's Truck Parts

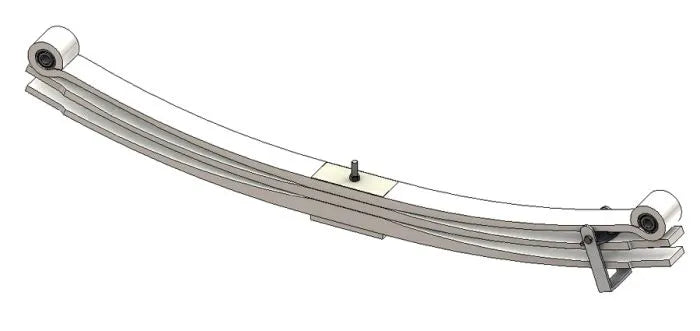

22-835- Tapered Two-Stage Leaf Spring

$ 432.01
22-835- Tapered Two-Stage Leaf Spring

DESCRIPTION
Tapered Two-Stage Leaf Spring

APPLICATIONS
Chevrolet GMC Isuzu : Kodiak, TopKick, C/B Conv. Cab 1990-up; FSR, FTR, FVR, FXR, F/T Series, P30/35 21K-22.5K 1998-99 (REAR)

SPECIFICATIONS
Application Chevrolet
Front/Rear Rear
End 1 Attachment Type Berlin Eye
End 1 Bushing RB191
End 2 Attachment Type Berlin Eye
End 2 Bushing RB191
Free Arch Length 4.625
Grading Configuration 2/999 2ND 1/1.625 PD/558 FULL TAPER
Capacity 11500
Number of Leaves 3
Leaf Width 3.00
Length Axis 1 29.8125
Length Axis 2 29.8125
Pack Thickness 4.25
Notes TWO STAGE

CROSS REFERENCE 15641030
