75-230 - Peterbilt Taper Spring

Taper Spring

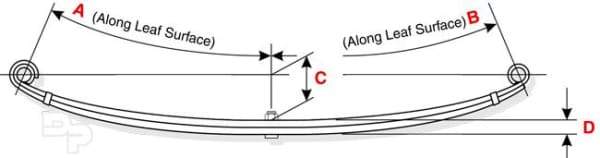

DIMENSIONS:
Width: 4 in. (100mm)
Short End (A) Dimension = 28 in. (711mm)
Long End (B) Dimension = 28 in. (711mm)
Leaves: 3PD/2
Leaf Arrangement: 3/394(10mm)
2/945(24mm)
A End - 1-1/2 in.
B End - 1-1/2 in.
Arch: 5-1/2 in. (140mm)
Capacity:6570 lbs.

APPLICATIONS:
387 Model (1999 - 2006)


CROSS REFERENCES:
02-04033 / 0204033 / 0204033 / 0204033
