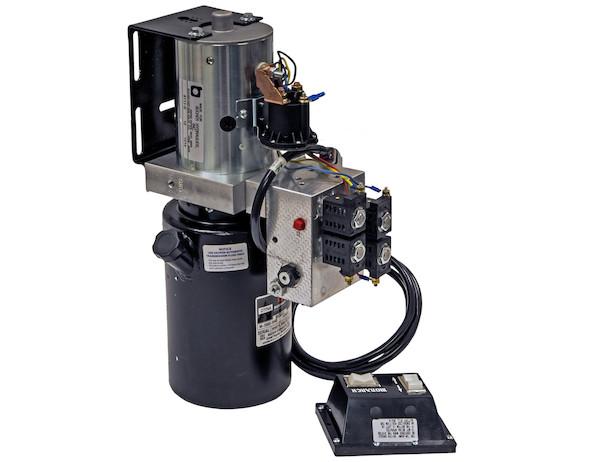

PU3593LRV - Buyers- 4-Way/3-Way DC Power Unit-Electric Controls Vertical 0.75 Gallon Reservoir
PU3593LRV - Buyers- 4-Way/3-Way DC Power Unit-Electric Controls Vertical 0.75 Gallon Reservoir
Compact, cost-effective power for snow plow lift and angle operations.
Includes everything you need to power the job.
Unit contains two independent circuits: 3 way for plow hoist; 4 way for power angle
Easy fingertip controls.
Crossover relief valve protects cylinder and blade should the plow strike a hidden object.
The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.
Product Common Use: Snow Plows
SPECIFICATIONS
Manual Or Push Button: Push button
Mounting Position: Vertical
Reservoir Material: Carbon Steel
Motor Horsepower: 2 HP
Reservoir Volume: 0.87 Gal
Pressure Rating: 2000 PSI
Motor Voltage: 12 VDC
Width: 7.69"
Length: 17.38"
Height: 10.81"
Spool Action: Power Up/Gravity Down, Power Up/Power Down
Number Of Cartridge Valves: 4
Outlet Port Size: 1/4 NPT
Controller Included?: Yes
Control Cable Length:72"
Motor Power (KW): 1.5
