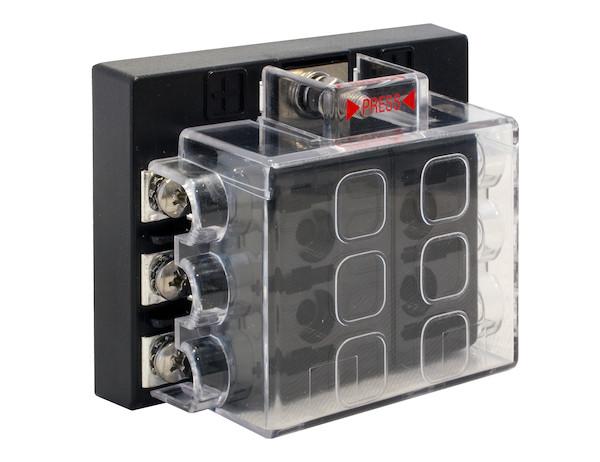

5601006 -Buyers 6-Way Fuse Block With Cover
5601006 -Buyers 6-Way Fuse Block With Cover
Provides supplemental power distribution for common truck accessories.
Can be used with ATC/ATO blade-type fuses (fuses not included).
Includes two tin-plated copper 10-32 studs; and six tin-plated copper terminl screws.
Has clear polycarbonate removable cover for easy viewing.
Features a black polycarbonate based with four mounting holes that accommodate #10 mounting screws.
Also includes self-adhesive pre-printed function labels.
Buyers Products 6-Way Fuse Block with Cover provides supplemental power distribution for most truck accessories. It is an ATC blade-type fuse panel with a clear plastic cover and black plastic base. It comes with self-adhesive labels to designate the various fuse functions.
It has 25A per circuit with 150A max per block.
Product Common Use: Snow Plows, Salt Spreaders, Utility Trucks
SPECIFICATIONS
Box Material: Plastic
Depth: 1.6
Length: 2.636"
Material: Plastic
Studs Material: Carbon Steel
Waterproff: YES
Width: 3.644"
Trip Current: 25 A
Reset: Auto
Color: Clear
Amps Max Per Circuit: 25
Amps Max Per Block: 100
Max Volts: 24 VDC
