Buyers-6381560-Central Hydraulic System 15 Gallon 6-Function
6381560- Central Hydraulic System 15 Gallon 6-Function
All-in-one solution provides quick and easy installation.Integrated valves mount on the tank, and make service and installation simple
Electric, in-cab controllers eliminate the need to plumb hydraulics into the cab
304 stainless steel reservoir and valve enclosure stands up to road grime, salt, and weather.
Buyers Products 15 Gallon Central Hydraulic System is designed for quick and easy installation. The system features electric, in-cab controllers which eliminates the need to plumb multiple hydraulic lines into the cab. Not only does the system save installation time, it also saves cab space and keeps the heat and noise outside.
The system offers a clear time savings in installation. Simply install the reservoir assembly, plumb the flow and functions, and its ready to go. It includes everything you need to set up either a 4-function hoist, spreader, and auger system; or a 6-function plow, spreader, and hoist system. All directional valves and spreader controls are mounted directly on the tank to streamline pluming and make service simple.

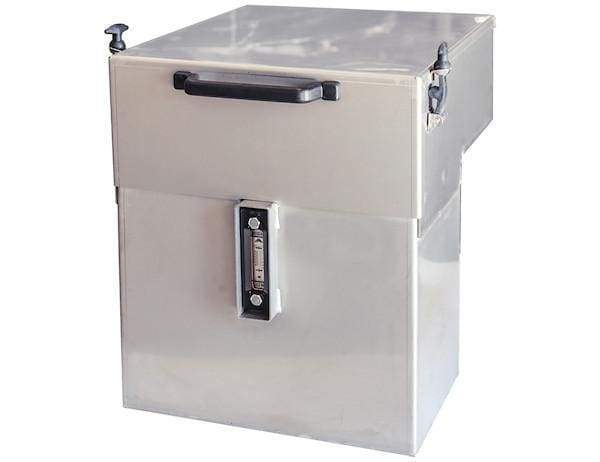

The 15 gallon reservoir assembly with valve enclosure is built from 304 stainless steel to stand up to road grime, salt, and inclement weather. It includes an in-tank return filter assembly, filler-strainer breather cap assembly, and a shielded sight temperature gauge. The valve enclosure features a latching stainless steel lid to provides the spreader, hoist, and plow valves additional protection.
The system is ideal for light to medium duty applications.
All Systems Include: Proportional spreader operation with compact 2-function or 3-function (auger-conveyor, spinner and pre-wet included with GPS versions) controls. 11 GPM, 3-way plow lift/4-way plow angle with two port reliefs and 4-way DA dump hoist with down port relief and power beyond, LED display, indexed dials, plow switch with detents to provide float in the down position, proportional spreader and auger speed control, 30 GPM adjustable flow divider valve.
Optional Additions:GPS with capability for pre-wet and liquid spray functions in one convenient controller, including programmable blast (1-30 seconds) and low pressure pre-wet indicator.
Product Common Use: Spreader/Dump Trucks, Plow/Spreader/Dump Trucks
SPECIFICATIONS:
Reservoir Volume 15 Gal
Reservoir Material 304 Stainless Steel
Reservoir Mount Position Side Mount
Number Of Functions Supported 6
Hoist Action Power Up/Power Down - 1 Port Relief
Plow Action Power Up/Power Down
Spreader Control Included? Yes
Spreader Control Type Electric Over Hydraulic
Spreader Controller HVC06
Plow Control Included? Yes
Plow Control Type Electric
Hoist Control Included? Yes
GPS Capable? No
GPS Included? No
Oil Level/Temperature Gauge Included? Yes
Inlet Port 3/4 SAE ORB (-12)
Work Ports 1/2 SAE ORB (-8)
Outlet Port 2 NPT
Suction Port 3/4 SAE ORB (-12)
Auger/Chain Port 1/2 SAE ORB (-8)
Spinner Port 1/2 SAE ORB (-8)
Main Relief Setting 1500 PSI
Port Relief Hoist 500 PSI
Port Relief Angle 1500 PSI
Maximum Flow Rate 28 GPM
Maximum Pressure 3000 PSI
Return Line Filter Included? Yes
Return Line Filter Element Material 304 Stainless Steel
Return Line Filter Flow Rating 26 GPM
Return Line Filter Rating 25 µm
Suction Filter Included? Yes
Suction Filter Flow Rating 49 GPM
Suction Filter Rating 150 µm
Magnetic Drain Plug Yes >br>Min Order Qty 1
Multiple Sale Qty 1
Product Code 638
Sell Pack Type Box
Shipping Weight 193.000
UPC 724920151504
