Buyers-HV715SAE-#12 SAE Dual Flow Hydraulic Spreader Valve Only 7-15 GPM, (product_type), (product_vendor) - Nick's Truck Parts

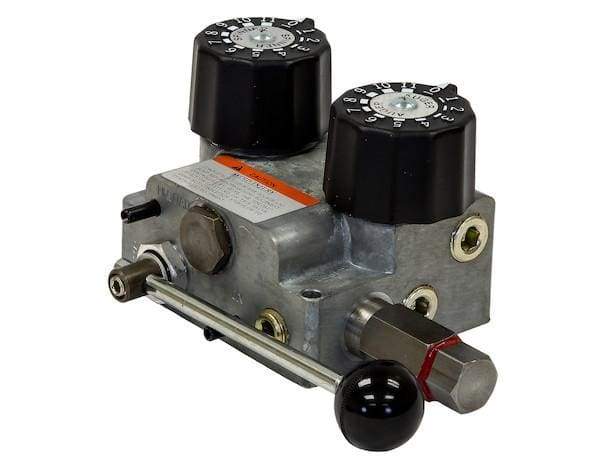

Buyers-HV715SAE-#12 SAE Dual Flow Hydraulic Spreader Valve Only 7-15 GPM

$ 241.64

HV715SAE- #12 SAE Dual Flow Hydraulic Spreader Valve Only 7-15 GPM

Compact and easy to install, with minimal plumbing.
Rugged, weather-resistant aluminum body.
Easy to adjust flow positions.
Built-in system relief.

The Dual Flow Hydraulic Spreader Valve from Buyers Products is compact and easy to install, with a durable aluminum body.
It features a built-in on/off control lever, system relief, and pressure compensation. Flow for each operation is easy to adjust, with two detent knobs that each feature 11 positive positions.
Product Common Use: Spreaders

SPECIFICATIONS
Type Fixed Displacement
Single Or Dual Flow? Dual
Functions Supported Spinner/Auger
Number Of Ports 4
Inlet Port 3/4 NPT
Spinner Port 1/2 NPT
Tank Port 3/4 SAE ORB (-12)
Auger/Chain Port 3/4 SAE ORB (-12)
Whats Included? Valve Only
Main Relief Setting 1500 PSI
Flow (GPM) 22 GPM
Flow (LPM) 83 LPM
Spinner Flow Rate Max (GPM) 7 GPM
Auger/Chain Flow Rate Max (LPM) 57.5 LPM
Spinner Flow Rate Max (LPM) 57.5 LPM
Auger/Chain Flow Rate Max (GPM) 15 GPM
Pressure 2000 PSI
Pressure (Bar) 140
Relief Cartridge Setting 1500 PSI
GPS Capable? No
GPS Included? No
Included Control Type Manual
Mount Type Base
Pre-Wet Supported? No
Shipping Weight 7.000
UPC 724920103053
