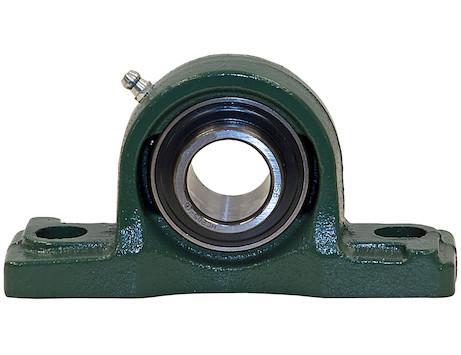

P16 -Buyers 1 Inch Shaft Diameter Eccentric Locking Collar Style PIllow Block Bearing
P16 -Buyers 1 Inch Shaft Diameter Eccentric Locking Collar Style PIllow Block Bearing
Self-aligning design.
Equipped to handle high-speed applications without risking drive shaft slippage due to eccentric locking collar.
Durable one-piece cast iron housing secures the bearing position.
Maintain smooth movement with easy greasable design.
Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage.
The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs.
The pillow block has a self-aligning design that allows for some shaft misalignment.
Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps , Shaft Driven Air Compressors , Shaft Driven Generators , Shaft Driven Water Pumps
SPECIFICATIONS:
Bearing Insert Material: Carbon Steel
Bolt Size: 0.375"
Greasable (Y/N) Yes
Housing Finish: Powder Coat
Housing Material: Cast Steel
Bore Diameter: 1.000"
Bearing Insert Type: Self Aligning
Mounting Surface To Shaft Center: 1.438"
Locking Type: Eccentric Locking Collar
Overall Width: 5.50"
Overall Height: 2.78"
Overall Depth: 1.50"
Bolt Slot Length: 0.750"
Bolt Slot Width: 0.500"
Base Thickness: 0.63"
