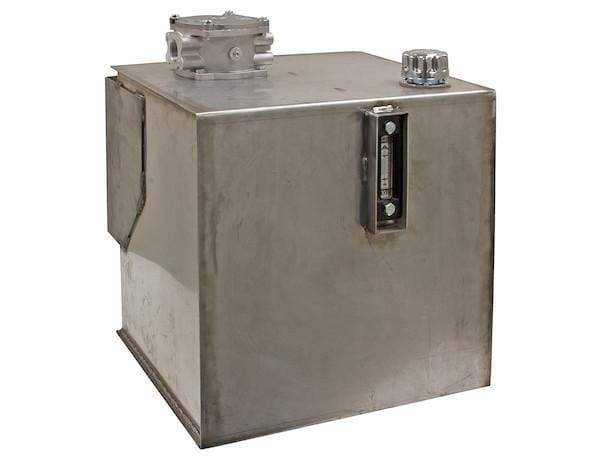

Buyers-SMR30SS10-30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir With 10 Micron Filter
SMR30SS10 - 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir With 10 Micron Filter
The 30 Gallon Stainless Steel Reservoir from Buyers Products is made of high-quality 304 stainless steel with welded-on carbon steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested.
The reservoir has several features for optimal fluid operation, including:
- a quarter-turn chrome filler breather with a wire basket strainer
- a sight fluid level and temperature gauge
- an interior baffle between suction and discharge to aid in fluid cooling
- a magnetic drain plug to aid in preventing metallic particle contamination
The reservoir comes pre-drilled for a tank-mounted HFA5S series return filter (sold separately).
Specifications
Capacity 30 Gal
Color: Natural< br>Depth 17.00"
Finish : Smooth
Hardware And Brackets Included (Y/N) No
Height 22 "
Integral Brackets (Y/N) Yes
Integral Level Gauge (Y/N) Yes
Material: Stainless Steel
Material Gauge : 13
Mount Position: Side Mount
Oil Level Gauge (Y/N) Yes
Reservoir Shape : Rectangle
Temperature Gauge (Y/N) Yes
Width 28.35 "
Usable Capacity 30 Gal
Suction Port Size 2 NPT
Included Valve (Y/N) No
Magnetic Drain Plug (Y/N) Yes
Return Line Filter Included (Y/N) Yes
Return Line Filter Rating: 10pm
Additional Port Size 1 1/4 NPT, 3/4 NPT
