TSA772 -Buyers H7 1-1/4 Inch Tubular Shaft Assembly 72 Inch Overall Length - Nick's Truck Parts

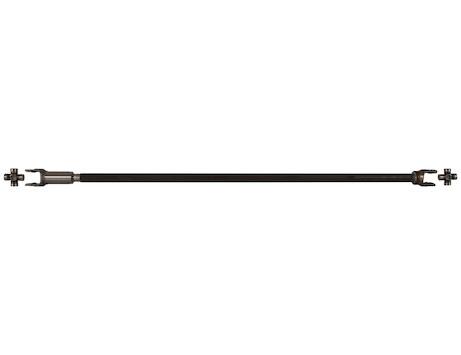

TSA772 -Buyers H7 1-1/4 Inch Tubular Shaft Assembly 72 Inch Overall Length

$ 146.10

TSA772 -Buyers H7 1-1/4 Inch Tubular Shaft Assembly 72 Inch Overall Length

Accommodates many different applications due to the customizable length tubular shaft.
Can be extended using a midship bearing and stub shaft available from Buyers Products.
Perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).
Torque transfer is kept smooth and continuous via the high quality needle-bearing style universal joints.
Order the whole assembly or just replace the part you need.

Buyers Products H7 1-1/4 In. Tubular Shaft Assembly can fulfill a variety of coupling applications due to its customizable length and medium duty torque rating. Torque transfer is smooth and continuous. The assembly comes to you unwelded so that it can be easily cut to length. Buy as a whole assembly, or choose the component that will fulfill your needs.
The tubular shaft assembly includes a slip yoke and splined stub kit, two journal assemblies, and tube and weld yoke. Assembly can be used with a midship stub in order to extend the coupling.

Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps , Shaft Driven Air Compressors , Shaft Driven Generators , Shaft Driven Water Pumps

SPECIFICATIONS
Center Of Journal Assembly To Center Of Journal Assembly Length: 67.0"
Tube And Weld Yoke Length: 58.5"
Series:TSA7
Journal Assembly Part Number: 5170BXA
Overall Length: 72.00"
Slip Yoke Part Number: 7381
Stub Shaft Part Number: SS
Tube And Weld Yoke Part Number: TS772
