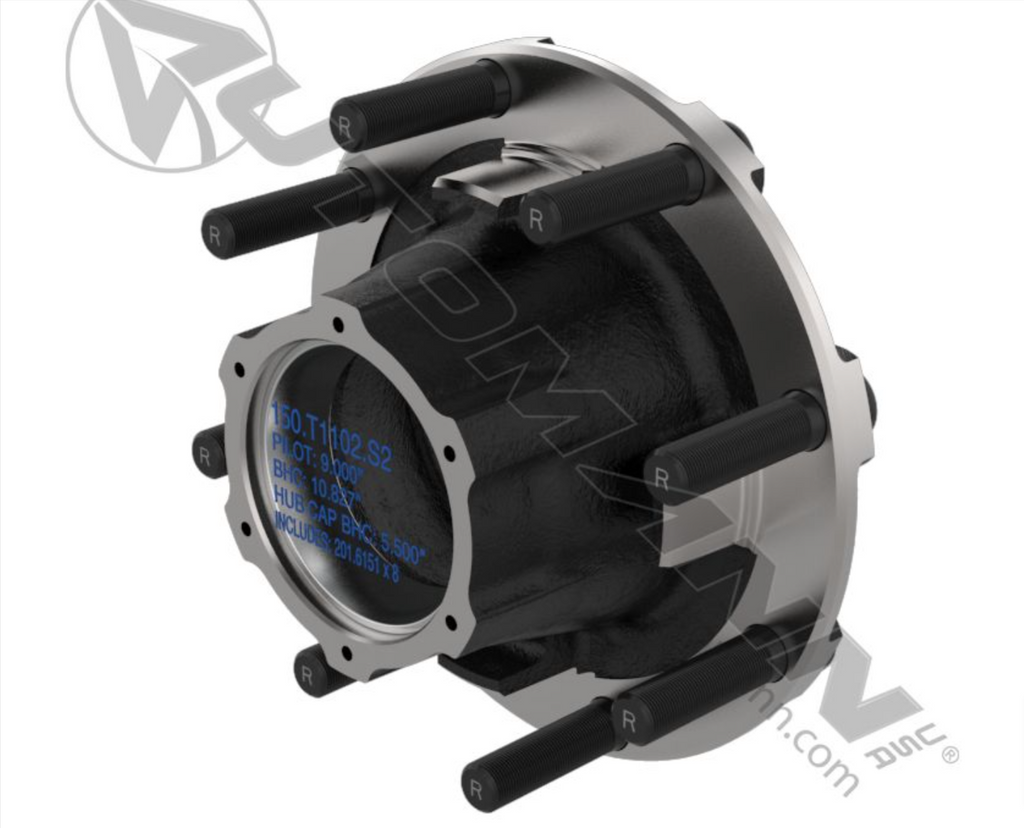

150.T1102.S2-Outboard Mount Hub Assy
150.T1102.S2- Outboard Mount Hub Assy
Specifications:
Hubs By: Trailer Axle
Drum Mounting: Outboard
ABS: Yes
Body Type: Cast
Overall Height: 7.210"
Distance Between Cups: 3.340"
Bolt Circle Diameter: 10.827
Pilot: 9.000"
Bolt Holes: 8
Includes Wheel Studs: Yes
Hubcap Holes 6 @ 5/16-18
Hubcap Bolt Circle Dia.: 5.500"
CROSS REFERENCES:
20271-3T80 / 202713T80
