5535002 -Buyers SaltDogg® DumperDogg® Replacement Tailgate Spreader
5535002 -Buyers SaltDogg® DumperDogg® Replacement Tailgate Spreader
DESCRIPTION

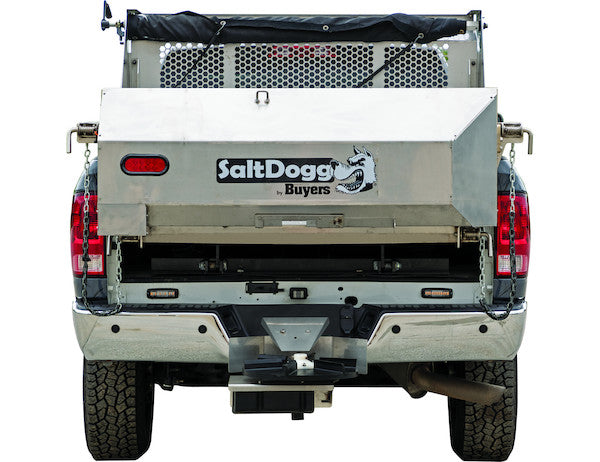

Buyers Products SaltDogg® Electric DumperDogg® Replacement Tailgate Spreader is designed to install in place of the tailgate of a DumperDogg dump insert. The spreader is easy to mount and remove. It maintains high clearance, making it ideal for spreading bulk salt or a 50/50 salt/sand mix with a DumperDogg.
The spreader is constructed of corrosion resistant 304 stainless steel. It features an anti-flow plate as well as a lifting loop for ease of installation. The spreader is equipped with a 5 in. dual flight auger with 3/8 in. flighting and a breaker bar with mixing tines that keeps material moving and screens on either end. It's powered by a 3/4 HP motor.
An independent 1/2 HP motor powers the 14 in. hinged poly spinner and can spread material up to 20 ft. The spreader is controlled by a heavy duty in-cab controller with independent variable speeds for the auger and spinner.
Product Common Use: DumperDogg®, Snow and Ice Control, Road and Highway Maintenance
SPECIFICATIONS
Chute Primary Material: 304 Stainless Steel
Controller Type: High Currant Variable Speed
Discharge Position: Center
Drive Type: Electric
Frame Material: 304 Stainless Steel
Hopper Material: 304 Stainless Steel
Number Of Motors: 2
Spinner Material: Polyurethane
Trough Material: 304 Stainless Steel
Works With Bagged #1 Rock Salt: YES
Works With Bulk Salt: YES
Works With Bulk Sand: NO
Works With Salt / Sand Mix: YES
Overall Height: 25.72"
Overall Length: 65.38'
Hopper Width: 63.50"
Top Screen: YES
Drive Motor Horse Power: 0.75HP
Spinner Motor Horse Power: .5HP
Vibrator Included?: NO
Spinner Diameter: 18.00"
Spreading Width Range: 4 to 25'
Gearbox Ratio: Direct
System Voltage: 12 vdc
Feed Mechanism: Horizontal Auger
Feed Mechanism2: 6" Auger
INSTALLATION INSTRUCTIONS: https://pimimages.buyersproducts.com/products/Documents/3015784_H.pdf
