Buyers-SALTDOGG-9035102-Hydraulic Replacement Tailgate Spreader Center Discharge
SALTDOGG-9035102 - Hydraulic Replacement Tailgate Spreader Center Discharge

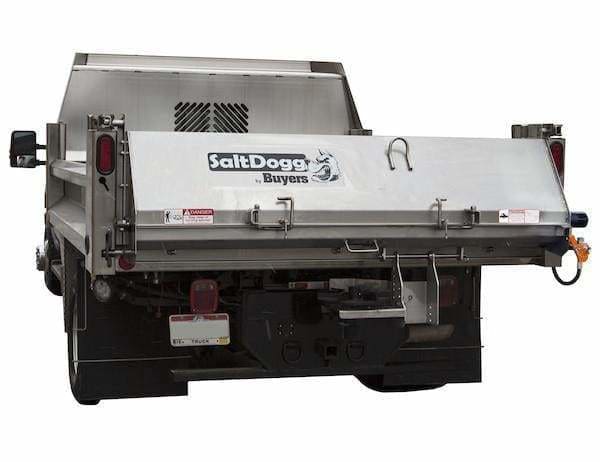

Buyers Products SaltDogg Hydraulic Replacement Tailgate Spreader is designed to install in place of the tailgate on 1 ton dump bodies. It is easy to mount and dismount and is ideal for dump bodies with low ground clearance. The spreader can handle bulk salt or a 50/50 salt/sand mix.
The spreader is constructed of corrosion resistant 304 stainless steel. It features an anti-flow plate as well as a lifting loop for ease of installation. The spreader is equipped with a 6 in. dual flight auger with 3/8 in. flighting to keeps material moving. It's driven by a single direct drive hydraulic motor and has screens on either end.
The 18 in. poly spinner uses its own independent hydraulic motor to spread material up to 25 ft with a driver side or center discharge.
Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS.
Product Common Use: Salt Spreaders, Snow and Ice Control, Road and Highway Maintenance
SPECIFICATIONS
Chute Primary Material: 304 Stainless Steel
ChuteStandardAdjustableExtended: Adjustable Height
Controller Type: Not Included
Drive Type: Hydraulic
Hopper Length: 23.80 "
Hopper Material :304 Stainless Steel
Number Of Motors: 2
Spinner Material: Polyurethane
Trough Material: 304 Stainless Steel
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Salt: Yes
Works With Bulk Sand: No
Works With Salt / Sand Mix: Yes
Overall Height 36.00 "
Overall Length 23.80 "
Overall Width (At Top) 84.27 "
Hopper Width 84.27 "
Top Screen: Yes
Vibrator Included? No
Spinner Diameter 18.00 "
Spreading Width Range: 4 To 25 '
Feed Mechanism: Horizontal Auger Feed
Mechanism2 : 6 in. Auger with 3/8 in. Flighting
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
LABEL,DANGER BEFORE SVCE,HYD LOCKOUT:
https://pimimages.buyersproducts.com/products/Documents/3015562_a.pdf
INSTRUCTION SHEET,RTS,HYDRAULIC
https://pimimages.buyersproducts.com/products/Documents/3032218_a.pdf
