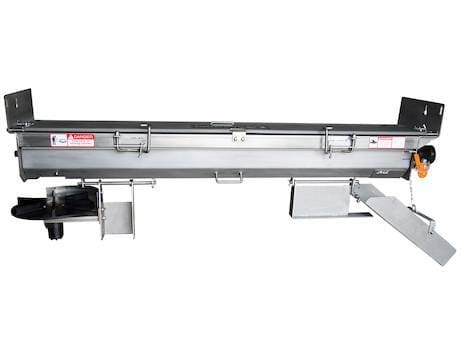

Buyers-SALTDOGG-92452SSA-Heavy Duty 9 Inch Auger Under Tailgate Spreader-15 Inch Sides-Stainless
SALTDOGG- 92452SSA- Heavy Duty 9 Inch Auger Under Tailgate Spreader-15 Inch Sides-Stainless
Works with 96 in. wide dump bodies.
Independent hydraulic auger and spinner motors.
Handles bulk sand, salt, a salt/sand mix, or 3/8 in. gravel.
Bi-directional auger flighting for standard and curbside discharge.
18 in. spinner casts material up to 40 ft.
Available with extended endplates to help direct material to the auger trough or spreader.
Hydraulic spreader controls sold separately with variety of options available.
Optional berm chute kit.
Made in the USA.
Buyers Products SaltDogg Heavy Duty Hydraulic Under Tailgate Spreader gives contractors and municipalities a heavy duty, under tailgate spreader that can handle 3/8 in. gravel in addition to bulk sand, salt, and salt/sand mixes. The spreader works with 96 in. wide dump bodies and comes outfitted with four hinged-top screens with 3/8 in. bars. It's controlled by a heavy duty, in-cab controller with independent variable speeds for the conveyor and spinner. The spreader runs a direct-coupled, hydraulic drive system for both the auger and the spinner
A 18 in. poly spinner can cast material up to 40 ft. The material can be discharged to either side, and a berm chute is OPTIONAL.
A SaltDogg spreader is built to last. It features 10 Ga 304 stainless steel construction for the ultimate in durability and corrosion resistance. It features an anti-flow plate and 3/16 in. stainless steel endplates. An extended endplate model is also available. A three-point hinged bottom cover allows easy access to the entire auger assembly for hassle-free cleanout. The spreader is equipped with a robust 9 in. auger with 3/8 in. flighting, which allows it to spread 3/8 in. gravel in addition to bulk salt and salt/sand mixes. The spreader comes with an auger screen and a hydraulic safety lockout system.
Spreader Controls Sold Separately
A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic (available with or without GPS ground speed control). See Related Products below.
Product Common Use: Snow and Ice Control, Road and Highway Maintenance
SPECIFICATIONS
Chute Primary Material: 304 Stainless Steel
ChuteStandardAdjustableExtended: Adjustable
Height Controller Type: Not Included
Discharge Position: Standard
Drive Type: Hydraulic
Hopper Length: 18.00 "
Hopper Material: 304 Stainless Steel
Number Of Motors: 2
Side Plate Height
15.00 "
Spinner Material: Polyurethane
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Salt: Yes
Works With Bulk Sand: Yes
Works With Salt / Sand Mix: Yes
Overall Height: 31.25 "
Overall Length: 18.00 "
Overall Width (At Top): 96.00 "
Hopper Width: 96.00 "
Top Screen: Yes
Vibrator included: No
Spinner Diameter: 18.00 "
Spreading Width Range: 4 To 25 '
Feed Mechanism: Horizontal Auger
Feed Mechanism 2: 9 in. Auger with 3/8 in. Flighting
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
LABEL,DANGER BEFORE SVCE,HYD LOCKOUT:
https://pimimages.buyersproducts.com/products/Documents/3015562_a.pdf
INSTRUCTION MANUAL,HYDRAULIC UTS, 9IN AUGER:
https://pimimages.buyersproducts.com/products/Documents/3031458_a.pdf
