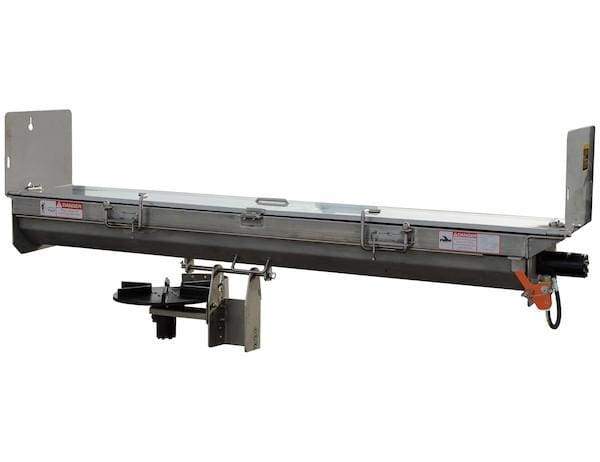

Buyers-92421SSA-SALTDOGG Under Tailgate Spreader With Extended Sides
92421SSA- SALTDOGG Under Tailgate Spreader With Extended Sides
Works with 96 in. wide dump bodies.
Rugged 6 in. auger with 3/8 in. flighting.
Independent hydraulic auger and spinner motors.
Handles bulk salt or a sand/salt mix.
18 in. poly spinner can cast material up to 40 ft.
High quality 304 stainless steel construction
Made in the USA.
Buyers Products SaltDogg Hydraulic Under Tailgate Spreader gives contractors and municipalities an under tailgate spreader that can handle spreading bulk sand, salt, or salt/sand mixes. It works with 96 in. wide dump bodies.
A SaltDogg Hydraulic Under Tailgate Spreader spreader is built to last. The spreader is constructed of high quality, 10 Ga 304 stainless steel construction for the ultimate in durability and corrosion resistance. The spreader is equipped with a 6 in. auger with 3/8 in. flighting and comes with an auger screen and a hydraulic safety lockout system. The spreader runs a direct-coupled, hydraulic drive system for both the auger and the spinner. It features a sealed, self-aligning 1-1/4 in. diameter bearing with grease fittings, and low-speed, high-torque orbital motors.
The spreader also features an anti-flow plate and 3/16 in. stainless steel endplates. An extended endplate model is also available. A three-point hinged bottom cover allows easy access to the entire auger assembly for hassle-free cleanout. In addition, its 18 in. poly spinner can cast material up to 40 ft, using a center or left discharge.
Buyers Products offers additional options that can make the spreader suit your needs, including hard-face flighting and stainless steel spill shields. Buyers Products offers additional options that can make the spreader suit your needs, including hard-face flighting and stainless steel spill shields.
Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS.
Product Common Use: Dump Bodies, Snow and Ice Control, Road and Highway Maintenance
SPECIFICATIONS
Chute Primary Material: 304 Stainless Steel
Chute: Adjustable Height
Controller Type: Not Included
Discharge Position: Standard
Drive Type: Hydraulic
Hopper Length: 18.00 "
Hopper Material: 304 Stainless Steel
Number Of Motors : 2
Side Plate Height: 15.00 "
Spinner Material: Polyurethane
Works With Bagged #1 Rock Salt: Yes
Works With Bulk Salt: Yes
Works With Bulk Sand: Yes
Works With Salt/ Sand Mix: Yes
Overall Height: 38.25 "
Overall Length 18.00 "
Overall Width (At Top) 96.00 "
Hopper Width: 96.00 "
Top Screen: Yes
Vibrator Included? No
Spinner Diameter: 18.00 "
Spreading Width Range: 4 To 25 '
Feed Mechanism: Horizontal Auger
Feed Mechanism2: 6 in. Auger with 3/8 in. Flighting
HIGHLIGHT THE LINK BELOW & RIGHT CLICK ON GO TO HTTPS:
LABEL,DANGER BEFORE SVCE,HYD LOCKOUT:
https://pimimages.buyersproducts.com/products/Documents/3015562_a.pdf
INSTRUCTION MANUAL,HYDRAULIC UTS:
https://pimimages.buyersproducts.com/products/Documents/3026614_B.PDF
