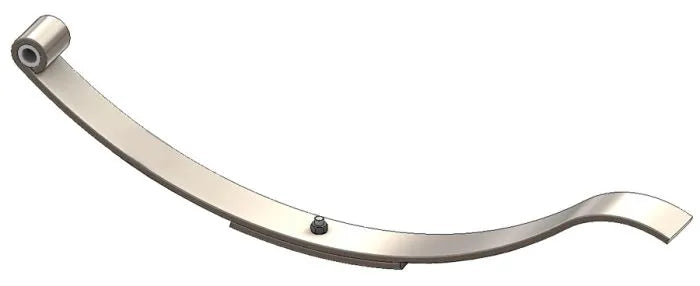

UNA-176- Utility Trailer Leaf Spring
UNA-176- Utility Trailer Leaf Spring
DESCRIPTION
Leaf Width: 1.75"
Leaves: 1
Length Axis 1: 14.5"
Length Axis 2: 12"
Free Arch Length: 4"
Load Rate: 230 lb
Bushings Included: YES
Grading Configuration: 1/237 PD
End 1 Attachment Type: Up Turned Eye
End 1 Bushing: PE-226
End 1 Bushing Material: Nylon
End 1 Bushing Inside Diameter: 0.5"End 1 Attachment Inside Diameter: 0.6875"
Suspension Grade Type: Standard
Helper Spring: NO
End Type: Radius Slipper
Free Length: 24.62"
CROSS REFERENCE: US-3060, US3060, URB24251, 4321-03, 432103, 432103 LR24501F, 432103LR24501F, UNA176
