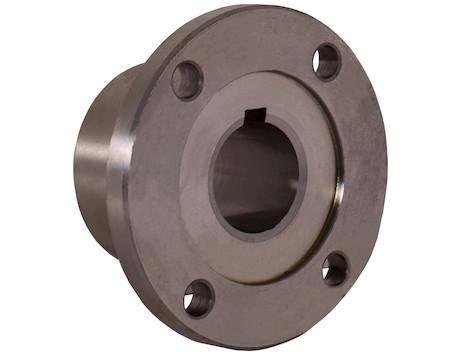

B21333 -Buyers B1310 Series Companion Flange
B21333 -Buyers B1310 Series Companion Flange
Use with Buyers Products B1310 Series Flange Yoke to create a 2-piece end yoke that can be bolted and unbolted.
Allows for ease of servicing the drive shaft.
Driven equipment does not need to be moved to service the auxiliary drive shaft assembly.
Buyers Products B1310 Series Companion Flange is used with the B1310 Series Flange Yoke to create a 2-piece end yoke that can be bolted and unbolted. This allows for ease of servicing the drive shaft, because the driven equipment does not need to be moved to service the auxiliary drive shaft assembly.
Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps , Shaft Driven Air Compressors , Shaft Driven Generators , Shaft Driven Water Pumps
SPECIFICATIONS
Bore Type: Round
Bore Diameter/Width: 1.250"
Bolt Circle Diameter: 3.125"
Flange Diameter: 3.875"
Bolt Hole Diameter: 0.375"
Thickness: 2.00
Flange Thickness: 0.375"
Hub Diameter: 2.440"
Key Width: 0.313"
Use with Buyers Products B1310 Series Flange Yoke to create a 2-piece end yoke that can be bolted and unbolted.
Allows for ease of servicing the drive shaft.
Driven equipment does not need to be moved to service the auxiliary drive shaft assembly.
Buyers Products B1310 Series Companion Flange is used with the B1310 Series Flange Yoke to create a 2-piece end yoke that can be bolted and unbolted. This allows for ease of servicing the drive shaft, because the driven equipment does not need to be moved to service the auxiliary drive shaft assembly.
Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps , Shaft Driven Air Compressors , Shaft Driven Generators , Shaft Driven Water Pumps
SPECIFICATIONS
Bore Type: Round
Bore Diameter/Width: 1.250"
Bolt Circle Diameter: 3.125"
Flange Diameter: 3.875"
Bolt Hole Diameter: 0.375"
Thickness: 2.00
Flange Thickness: 0.375"
Hub Diameter: 2.440"
Key Width: 0.313"
