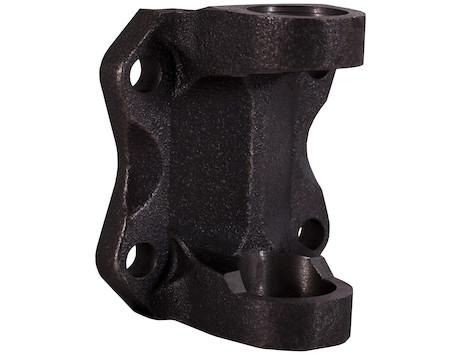

B22329 -Buyers B1310 Series Flange Yoke 3-1/8 Inch Diameter 4-Bolt Hole Pattern
B22329 -Buyers B1310 Series Flange Yoke 3-1/8 Inch Diameter 4-Bolt Hole Pattern
Compatible with other major manufacturers' driveline components.
Perfect for heavy-duty applications -- handles up to 1560 inch pounds of torque at 1000 RPM continuous duty (25 HP).
Variety of sizes and bore types available.
Allows for smooth and continuous torque transfer when used with Buyers Products 5153XBA U-joints.
Gives you the ability to disassemble a drive shaft where space is tight
Buyers Products B1310 Series Flange Yoke works seamlessly with heavy duty PTO driveline components in order to deliver reliable flexible coupling. The yoke is compatible with other major manufacturers' heavy duty driveline components. It comes in two different sizes and bore types to work with your system.
The yoke is made of forged steel for strength and durability. It works with Buyers Products 5153XBA U-joint to provide smooth and continuous torque transfer.
The B1310 Series Flange Yoke is perfect for heavy duty applications with the ability to handle up to 1560 inch pounds of torque at 1000 RPM continuous duty (approximately 25 HP).
Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps , Shaft Driven Air Compressors , Shaft Driven Generators , Shaft Driven Water Pumps
SPECIFICATIONS
Finish: Plain
Material: Cast Steel
Series: B1310
Bolt Circle Diameter: 3.125"
Pilot Diameter: 2.375"
Flange Diameter: 3.875"
Bolt Hole Diameter: 0.388"
Face to Pin Center: 1.375"
Pin Hole Diameter: 1.063"
Yoke Diameter: 3.469"
Bolt Circle Spacing: 80 A
