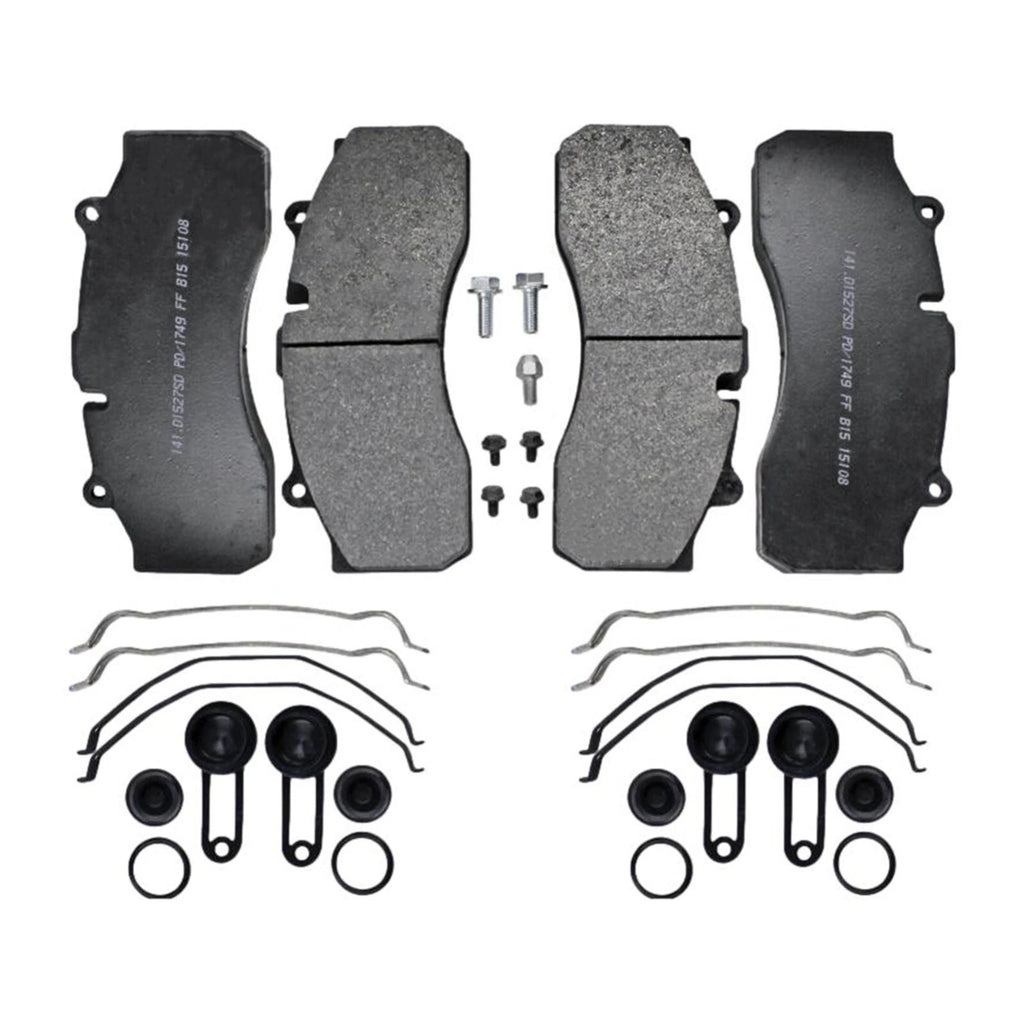

141.D1527SD-Air Disc Brake Pads Severe Duty (FMSI 8735 D1527)
141.D1527SD -Air Disc Brake Pads Severe Duty (FMSI 8735 D1527)
Automann “SD” (severe duty) air disc brake pads are formulated for demanding service and can be used on vehicles in combination with 20,000-lb or 23,000-lb rated drum brake materials.
¢ The back plates are blanked from a high grade of hot-rolled, pickled and oiled steel to resist corrosion.
The pad retention system is the long-time proven mechanical attachment method of wire mesh welded to the steel back plate combined with a special, high strength under layer to insure a secure bond for the life of the pad.
The friction material itself is integrally molded to the under layer.
The “SD” formulation has a long history of use in Europe and has been ECE R-90 performance certified. This material offers consistent service in demanding applications and good wear characteristics.
Each axle set of disc brake pads comes packaged with the hardware needed to complete a first class brake job.
CROSS REFERENCE:
D1527, 8735-D1527, M91002704, 79022008, 79022031, 91567, MPBD1527HD, 29143, 29185, 141.D1527SD
